Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

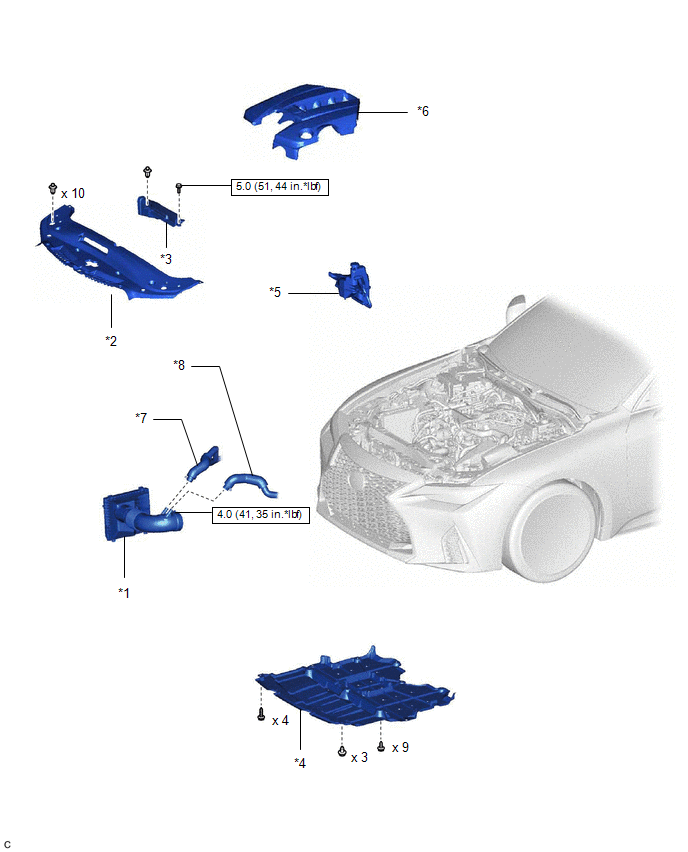

| *1 |
AIR CLEANER CAP WITH AIR CLEANER HOSE |
*2 |
COOL AIR INTAKE DUCT SEAL |
| *3 |
INLET NO. 1 AIR CLEANER |
*4 |
ENGINE UNDER COVER |
| *5 |
RADIATOR RESERVE TANK ASSEMBLY |
*6 |
V-BANK COVER SUB-ASSEMBLY |
| *7 |
NO. 2 VENTILATION HOSE |
*8 |
NO. 3 VENTILATION HOSE |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |

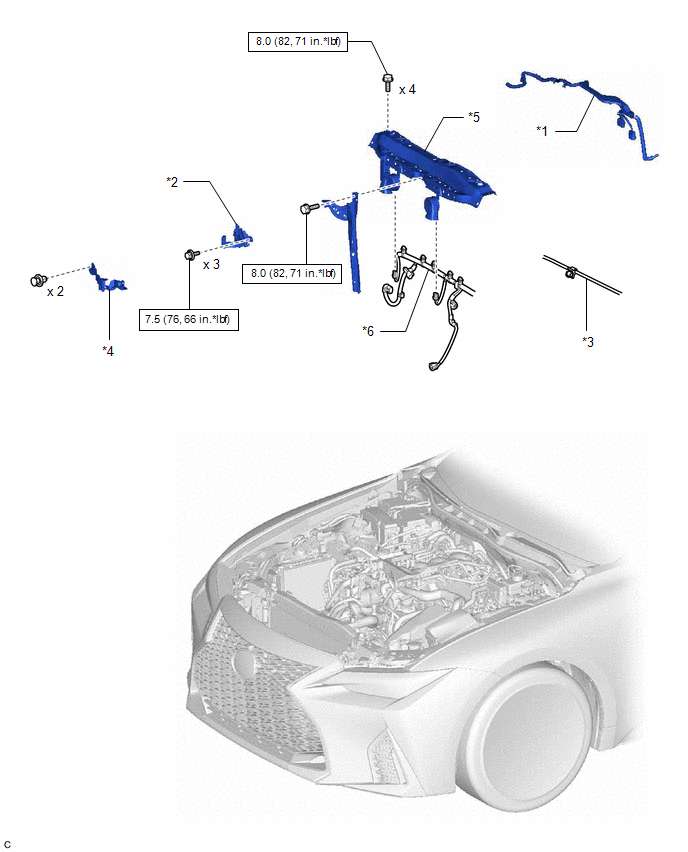

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
ENGINE ROOM MAIN WIRE |
*2 |
HOOD LOCK ASSEMBLY |
| *3 |
HOOD LOCK CONTROL CABLE ASSEMBLY |
*4 |
HOOD LOCK RELEASE LEVER PROTECTOR |
| *5 |
UPPER RADIATOR SUPPORT |
*6 |
WIRE HARNESS |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |

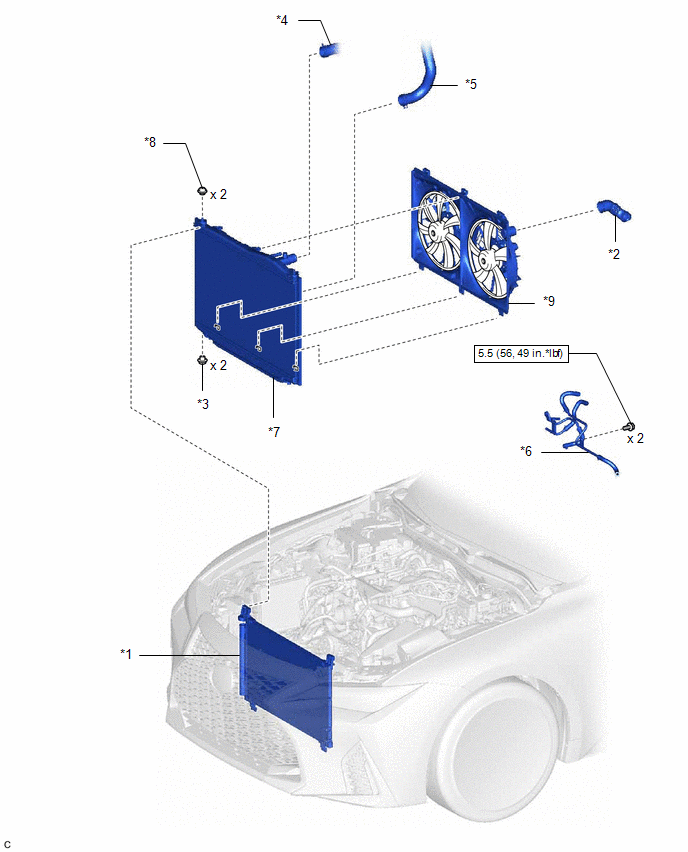

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
COOLER CONDENSER ASSEMBLY |
*2 |
ENGINE ROOM ECU OUTLET DUCT |
| *3 |
LOWER RADIATOR SUPPORT |
*4 |
NO. 1 RADIATOR HOSE |
| *5 |
NO. 2 RADIATOR HOSE |
*6 |
OIL COOLER TUBE |
| *7 |
RADIATOR ASSEMBLY |
*8 |
RADIATOR SUPPORT CUSHION |
| *9 |
FAN SHROUD ASSEMBLY |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
