Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE COOLING FAN WIRE

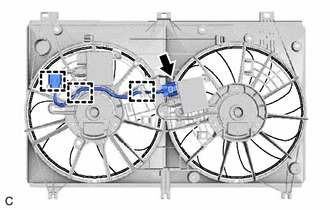

    1. Disconnect the cooling fan wire connector.
      GTY499720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clamps to remove the cooling fan wire.
  3. REMOVE COOLING FAN ECU

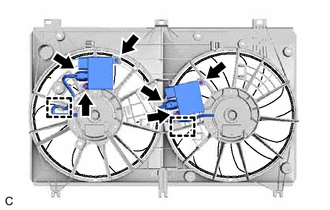

    1. Disconnect the cooling fan motor connector and No. 2 cooling fan motor connector.
      GTY499719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps.
    3. Remove the 4 screws and 2 cooling fan ECUs.
  4. REMOVE FAN

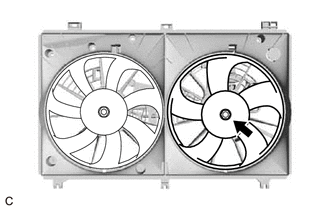

    1. Remove the nut and fan.
      GTY499724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 FAN

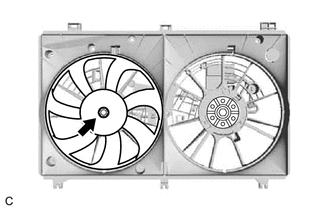

    1. Remove the nut and No. 2 fan.
      GTY499723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE COOLING FAN MOTOR

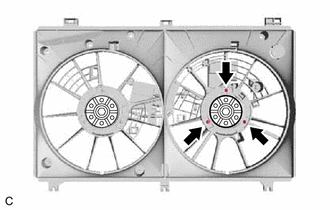

    1. Remove the 3 screws and cooling fan motor.
      GTY499722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 COOLING FAN MOTOR

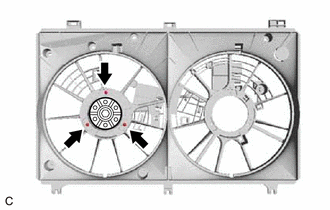

    1. Remove the 3 screws and No. 2 cooling fan motor.
      GTY517986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
