System Diagram [10/2017 - ]

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

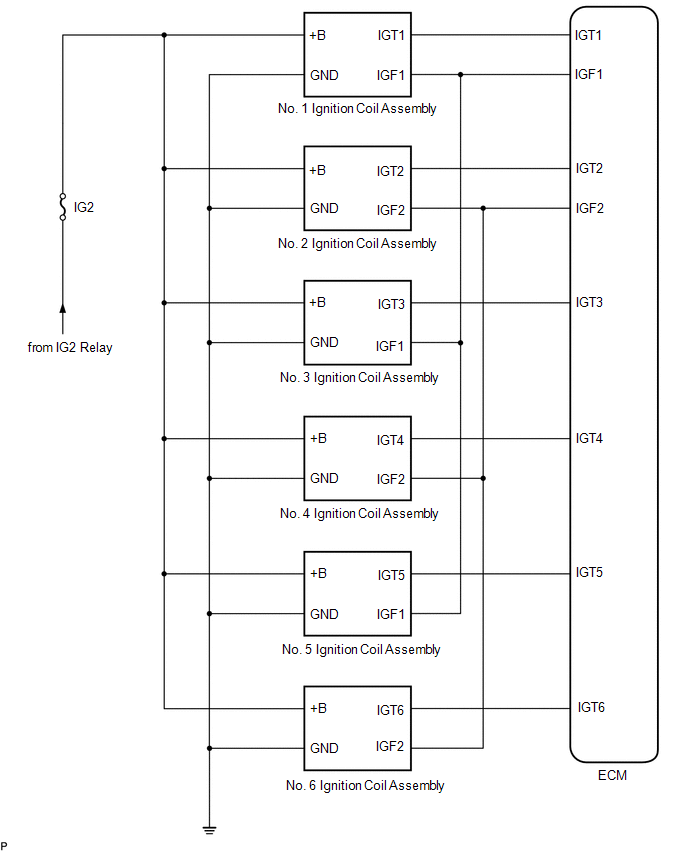

Fig 1: Ignition System Wiring Diagram
GTY790546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
