DTC P2610-29: ECM/PCM Engine Off Timer Performance Signal Invalid; DTC P2610-93: ECM/PCM Engine Off Timer Performance No Operation [10/2017 - ]: Description

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

The soak timer operates after the engine switch is turned off. When a certain amount of time has elapsed after turning the engine switch off, the soak timer activates the ECM to perform malfunction checks which can only be performed after the engine is stopped. The soak timer is built into the ECM.

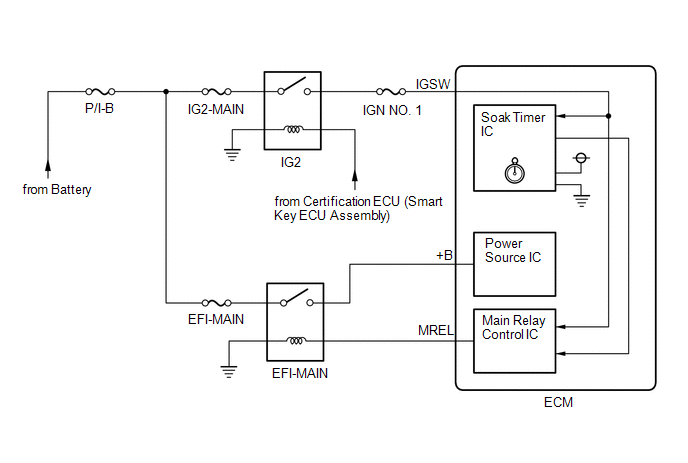

Fig 1: Malfunction Checks Diagram
GTY790688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
