Removal [10/2017 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FUEL PUMP FILTER
Refer to DISASSEMBLY [10/2017 - ]
- REMOVE FUEL MAIN VALVE ASSEMBLY
- Remove the fuel main valve assembly (for Low Pressure).
- Remove the clip from the fuel filter.

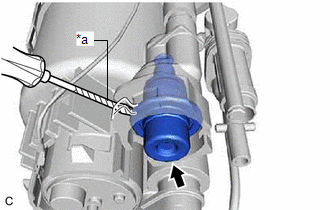

- Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.
*a Protective Tape NOTE:- Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
- Do not damage the fuel filter.
- Remove the 2 O-rings from the fuel main valve assembly.
*1 O-ring
- Remove the fuel main valve assembly (for High Pressure).
- Remove the clip from the fuel filter.
- Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.
*a Protective Tape NOTE:- Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
- Do not damage the fuel filter.
- Remove the 2 O-rings from the fuel main valve assembly.
*1 O-ring
- Remove the fuel main valve assembly (for Low Pressure).
