Installation [10/2017 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL FUEL MAIN VALVE ASSEMBLY
- Apply gasoline to 2 new O-rings. Then install the O-rings to the fuel main valve assembly (for Low Pressure).
- Apply gasoline to 2 new O-rings. Then install the O-rings to the fuel main valve assembly (for High Pressure).
- Install the 2 fuel main valve assemblies to the fuel filter.

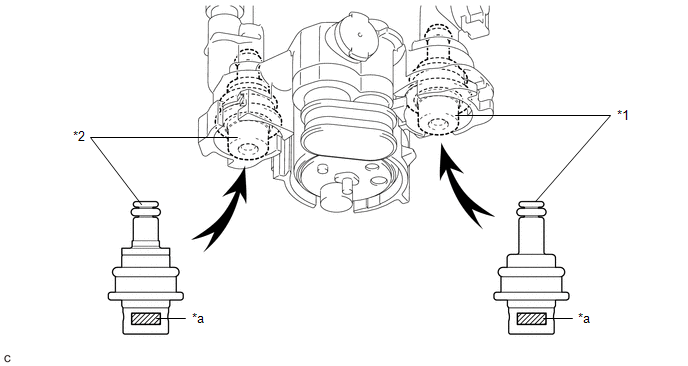

*1 Fuel Main Valve Assembly (for Low Pressure) *2 Fuel Main Valve Assembly (for High Pressure) *a Identification Mark (Part Number) - - NOTE:- Make sure that the O-rings are not cut or pinched during installation.
- The fuel main valve assembly (for Low Pressure) and fuel main valve assembly (for High Pressure) have identification marks (part numbers). If the parts are installed in the incorrect positions, the engine may stall. Therefore, make sure to install the parts in the correct positions.
HINT:
A Fuel Main Valve Assembly (for Low Pressure) 23070-31*** B Fuel Main Valve Assembly (for High Pressure) 23070-36*** - Install the 2 clips to the fuel filter.
- INSTALL FUEL PUMP FILTER
Refer to REASSEMBLY [10/2017 - ]
