Components [10/2017 - ]

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

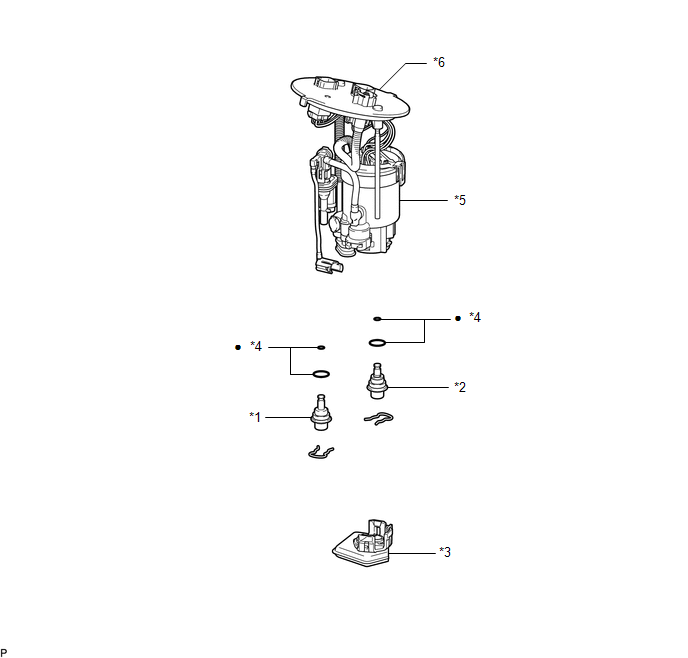

Fig 1: Fuel Main Valve Replacement Components
GTY805411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL MAIN VALVE ASSEMBLY (for Low Pressure) *2 FUEL MAIN VALVE ASSEMBLY (for High Pressure)
*3 FUEL PUMP FILTER *4 O-RING
*5 FUEL FILTER *6 FUEL SUCTION PLATE SUB-ASSEMBLY
• Non-reusable part - -
