Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [10/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]
DISCHARGE FUEL SYSTEM PRESSURE
Refer to PRECAUTION [10/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [10/2017 - 09/2020] , or refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
REMOVE INTAKE MANIFOLD
Refer to REMOVAL [10/2017 - ]

SEPARATE NO. 2 WATER BY-PASS PIPE

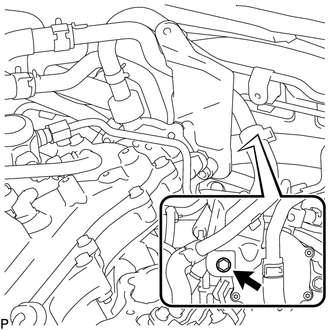

Remove the bolt and separate the No. 2 water by-pass pipe from the vacuum pump.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT FUEL TUBE SUB-ASSEMBLY

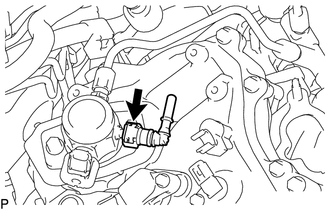

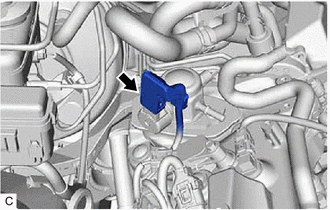

Disengage the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

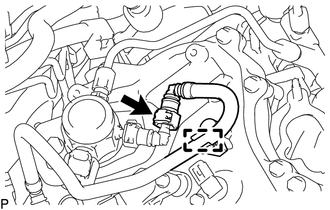

Disconnect the fuel tube sub-assembly from the fuel main tube connector.
Refer to PRECAUTION [10/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]

REMOVE FUEL MAIN TUBE CONNECTOR

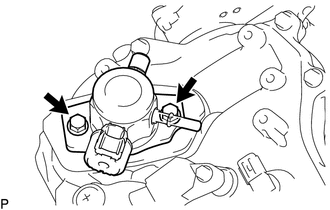

Remove the fuel main tube connector from the fuel pump assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PRECAUTION [10/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]

REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

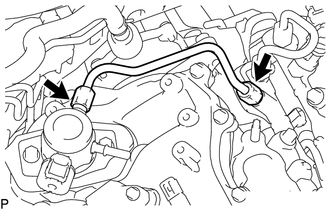

Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the No. 1 fuel pipe sub-assembly from the fuel delivery pipe RH and fuel pump assembly.

REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

Disconnect the fuel pump assembly connector.

Remove the 2 bolts, fuel pump assembly and fuel pump lifter guide from the cylinder head cover sub-assembly.

Remove the O-ring from the fuel pump assembly.

O-ring

Remove the fuel pump lifter assembly from the fuel pump lifter housing.
Remove the fuel pump spacer gasket from the cylinder head cover sub-assembly.
