Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

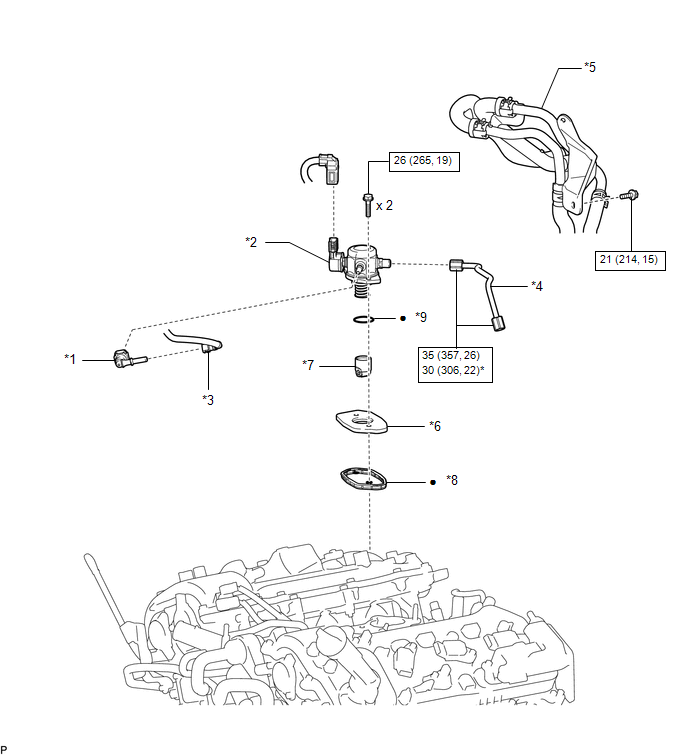

| *1 | FUEL MAIN TUBE CONNECTOR | *2 | FUEL PUMP ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *5 | NO. 2 WATER BY-PASS PIPE | *6 | FUEL PUMP LIFTER GUIDE |
| *7 | FUEL PUMP LIFTER ASSEMBLY | *8 | FUEL PUMP SPACER GASKET |
| *9 | O-RING | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with union nut wrench | |
| • | Non-reusable part | - | - |
