Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

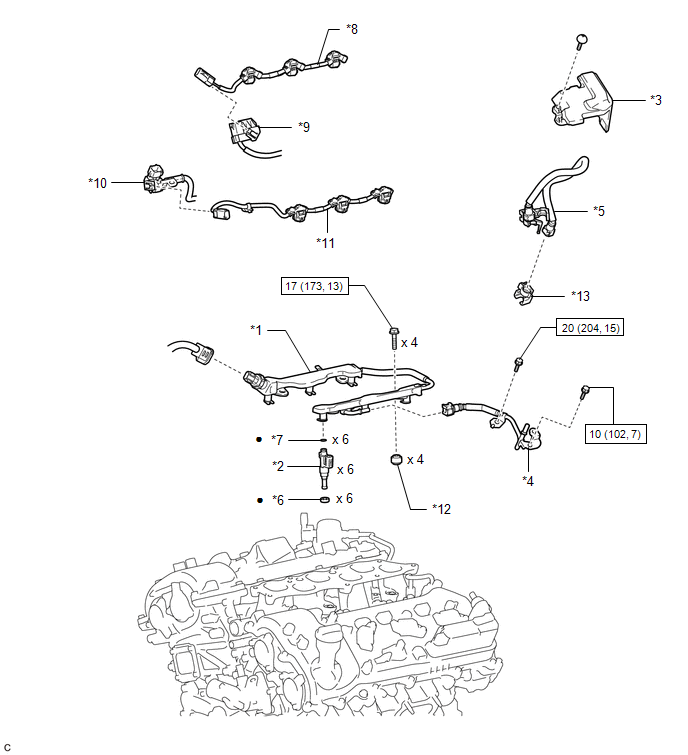

| *1 | FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY | *2 | FUEL INJECTOR ASSEMBLY |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | NO. 1 FUEL TUBE SUB-ASSEMBLY |
| *5 | NO. 2 FUEL TUBE SUB-ASSEMBLY | *6 | INJECTOR VIBRATION INSULATOR |
| *7 | O-RING | *8 | NO. 5 ENGINE WIRE |
| *9 | NO. 6 ENGINE WIRE | *10 | NO. 7 ENGINE WIRE |
| *11 | NO. 8 ENGINE WIRE | *12 | NO. 1 DELIVERY PIPE SPACER |
| *13 | FUEL HOSE CLAMP | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
