Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

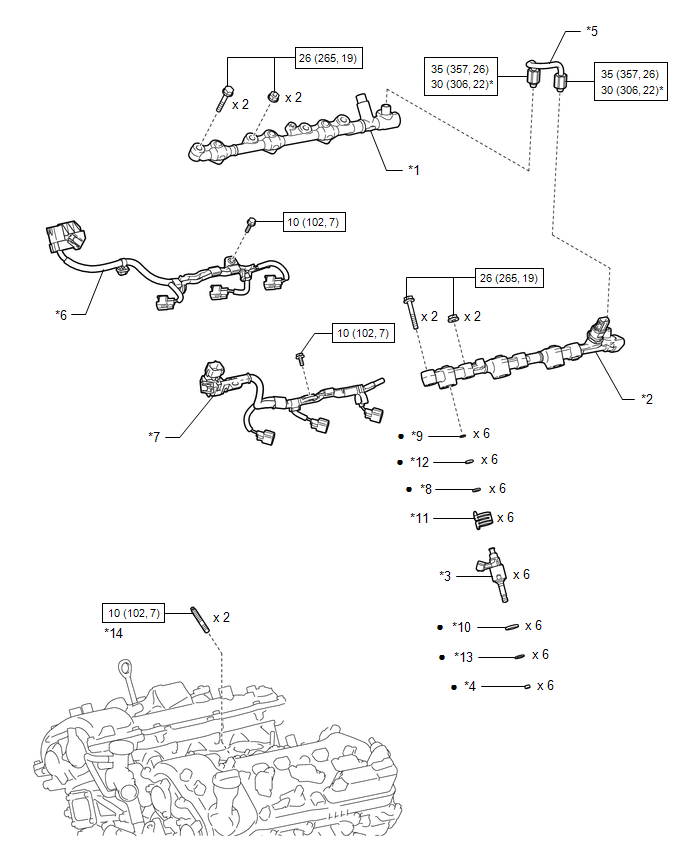

| *1 | FUEL DELIVERY PIPE RH | *2 | FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH |
| *3 | FUEL INJECTOR ASSEMBLY | *4 | FUEL INJECTOR SEAL |
| *5 | NO. 2 FUEL PIPE SUB-ASSEMBLY | *6 | NO. 6 ENGINE WIRE |
| *7 | NO. 7 ENGINE WIRE | *8 | NO. 1 FUEL INJECTOR BACK-UP RING |
| *9 | NO. 3 FUEL INJECTOR BACK-UP RING | *10 | INJECTOR VIBRATION INSULATOR |
| *11 | NOZZLE HOLDER CLAMP | *12 | O-RING |
| *13 | C-RING | *14 | STUD BOLT |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |
