Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AUTOMATIC TRANSMISSION ASSEMBLY (for 2WD)
Refer to REMOVAL [04/2013 - 08/2015]
REMOVE AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY (for AWD)
Refer to REMOVAL [04/2013 - 08/2015]

REMOVE DRIVE PLATE

Using SST, hold the crankshaft pulley.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09330-0002109213-70011
1. 09213-70020

Remove the 8 bolts, front drive plate spacer, drive plate and rear drive plate spacer.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE ENGINE REAR OIL SEAL

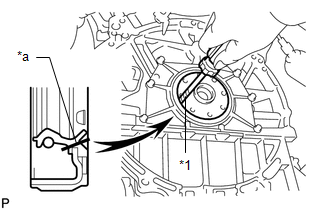

Using a knife, cut through the engine rear oil seal lip.

*1	Protective Tape
*a	Cut Position

Using a screwdriver with its tip taped, pry out the engine rear oil seal.
HINT:

Tape the screwdriver tip before use.

NOTE:
After the removal, check the crankshaft for damage.

If it is damaged, smooth the surface with 400-grit sandpaper.
