Components [04/2013 - 08/2015]
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

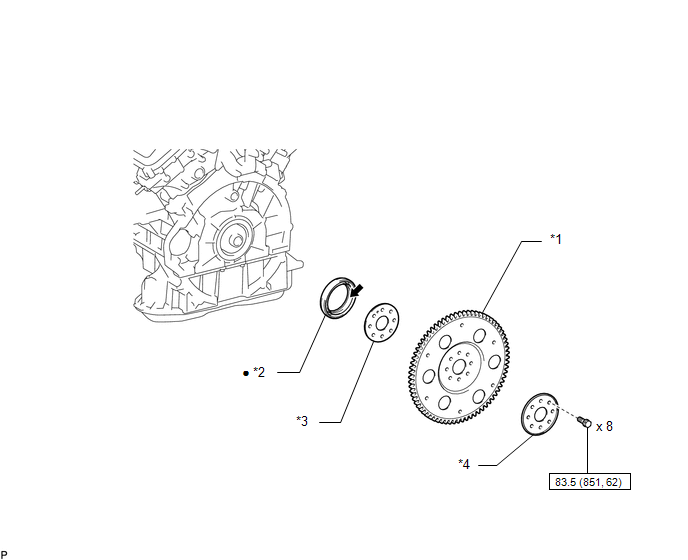

Fig 1: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications [04/2013 - 08/2015]
| *1 | DRIVE PLATE | *2 | ENGINE REAR OIL SEAL |
| *3 | FRONT DRIVE PLATE SPACER | *4 | REAR DRIVE PLATE SPACER |
| N.m (kgf/cm, ft/lbf) : Specified torque | • | Non-reusable part | |
| Non-reusable part | * | Precoated part |
