Components [04/2013 - 08/2015]
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

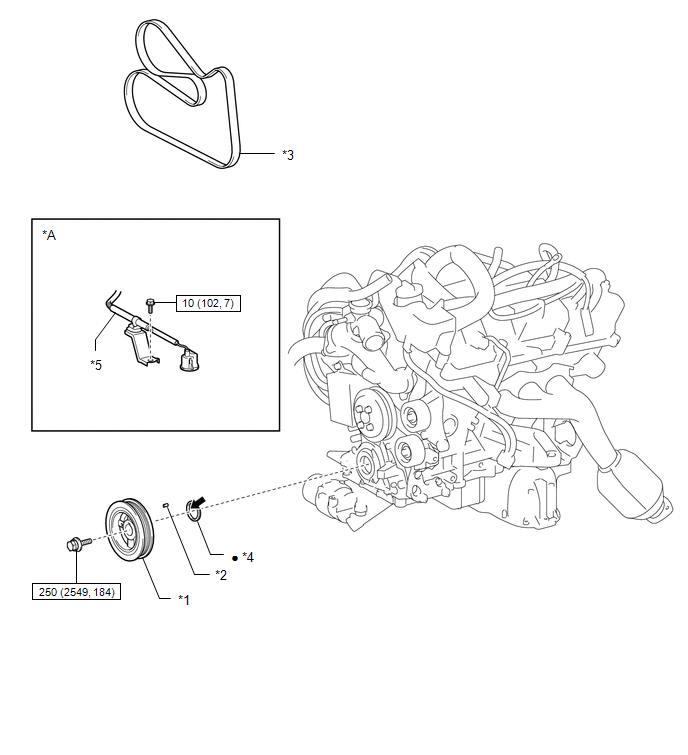

Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications [04/2013 - 08/2015]
| *A | for 2WD | - | - |
| *1 | CRANKSHAFT PULLEY | *2 | CRANKSHAFT TIMING GEAR KEY |
| *3 | V-RIBBED BELT | *4 | TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL |
| *5 | WIRE HARNESS | - | - |
| N.m (kgf/cm, ft/lbf) : Specified torque | • | Non-reusable part | |
| MP Grease | - | - |
