Components [04/2013 - 08/2015]

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

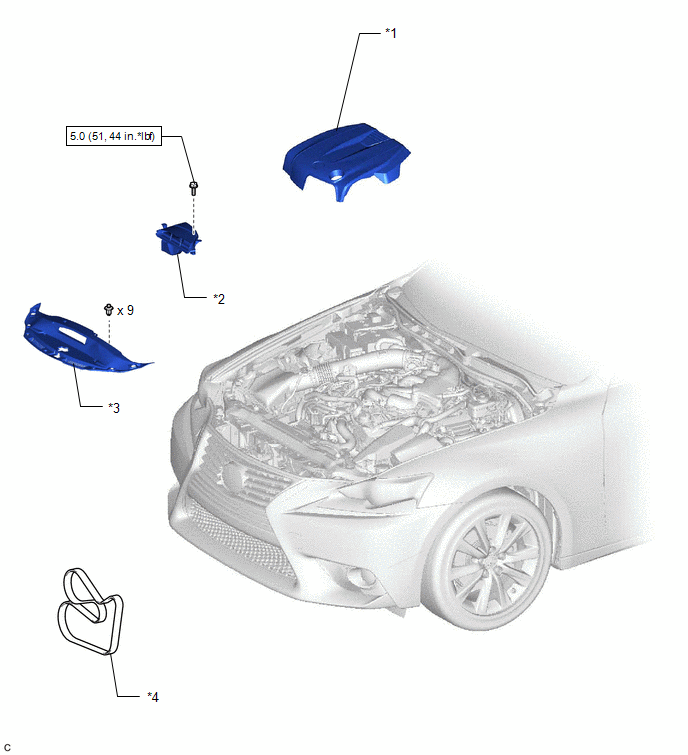

Fig 1: Drive Belt Replacement Components With Torque Specifications
GTY461688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 V-BANK COVER SUB-ASSEMBLY *2 INLET NO. 1 AIR CLEANER
*3 COOL AIR INTAKE DUCT SEAL *4 V-RIBBED BELT
N.m (kgf/cm, ft.lbf): Specified torque - -
