Components [04/2013 - 08/2015]
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

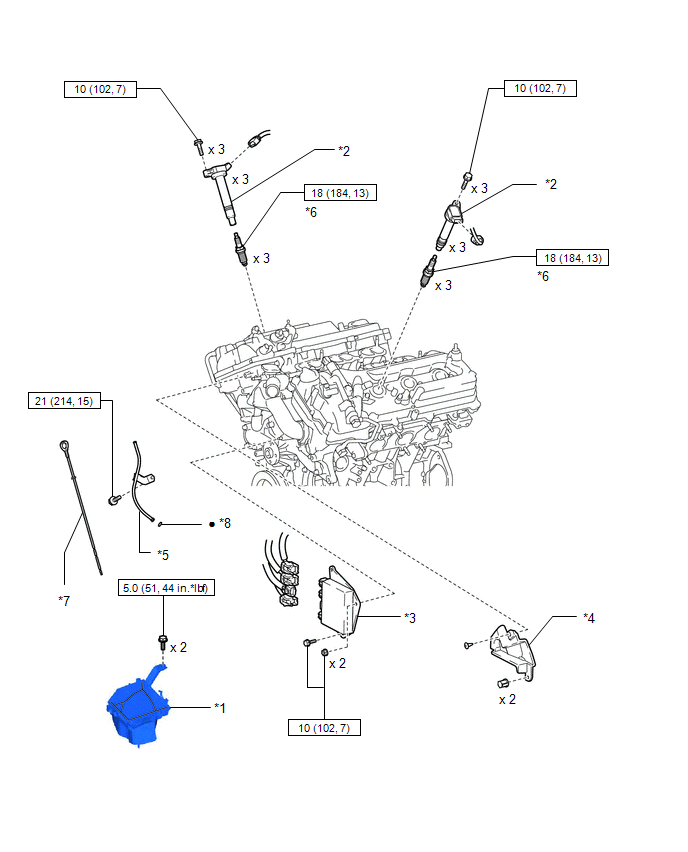

| *1 |
AIR CLEANER CASE SUB-ASSEMBLY |
*2 |
IGNITION COIL ASSEMBLY |
| *3 |
INJECTOR DRIVER |
*4 |
NO. 1 ENGINE COVER |
| *5 |
NO. 2 OIL LEVEL DIPSTICK GUIDE |
*6 |
SPARK PLUG |
| *7 |
ENGINE OIL LEVEL DIPSTICK |
*8 |
O-RING |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

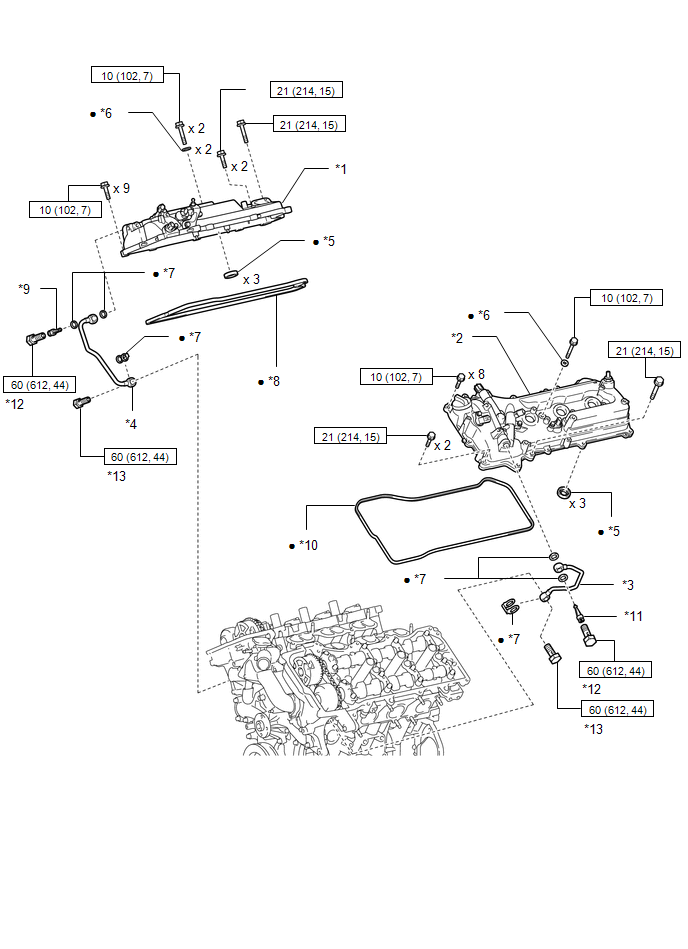

| *1 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*2 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
| *3 |
NO. 1 OIL PIPE |
*4 |
NO. 2 OIL PIPE |
| *5 |
SPARK PLUG TUBE GASKET |
*6 |
CYLINDER HEAD COVER SEAL WASHER |
| *7 |
GASKET |
*8 |
CYLINDER HEAD COVER GASKET |
| *9 |
OIL CONTROL VALVE FILTER RH |
*10 |
CYLINDER HEAD COVER GASKET LH |
| *11 |
OIL CONTROL VALVE FILTER LH |
*12 |
OIL PIPE UNION |
| *13 |
OIL CHECK VALVE BOLT |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
| * |
Precoated part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

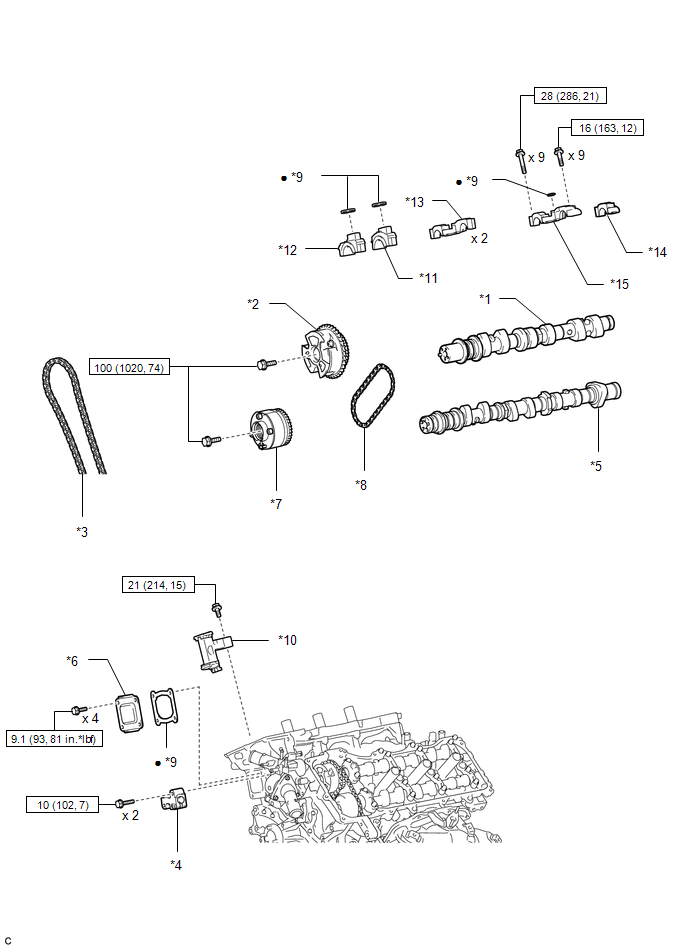

| *1 |
CAMSHAFT |
*2 |
CAMSHAFT TIMING GEAR ASSEMBLY |
| *3 |
CHAIN SUB-ASSEMBLY |
*4 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
| *5 |
NO. 2 CAMSHAFT |
*6 |
TIMING CHAIN COVER PLATE |
| *7 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY RH |
*8 |
NO. 2 CHAIN SUB-ASSEMBLY |
| *9 |
GASKET |
*10 |
NO. 2 CHAIN TENSIONER ASSEMBLY |
| *11 |
NO. 1 CAMSHAFT BEARING CAP |
*12 |
NO. 2 CAMSHAFT BEARING CAP |
| *13 |
NO. 5 CAMSHAFT BEARING CAP |
*14 |
NO. 6 CAMSHAFT BEARING CAP |
| *15 |
NO. 7 CAMSHAFT BEARING CAP |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

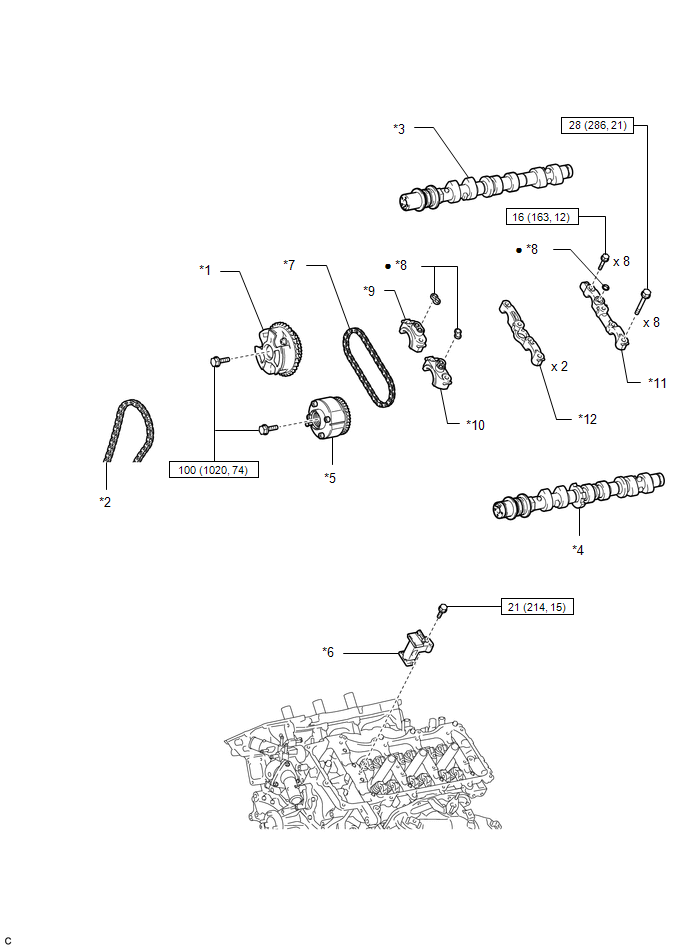

| *1 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*2 |
CHAIN SUB-ASSEMBLY |
| *3 |
NO. 3 CAMSHAFT SUB-ASSEMBLY |
*4 |
NO. 4 CAMSHAFT SUB-ASSEMBLY |
| *5 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY LH |
*6 |
NO. 3 CHAIN TENSIONER ASSEMBLY |
| *7 |
NO. 2 CHAIN SUB-ASSEMBLY |
*8 |
GASKET |
| *9 |
NO. 3 CAMSHAFT BEARING CAP |
*10 |
NO. 4 CAMSHAFT BEARING CAP |
| *11 |
NO. 7 CAMSHAFT BEARING CAP |
*12 |
NO. 8 CAMSHAFT BEARING CAP |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
