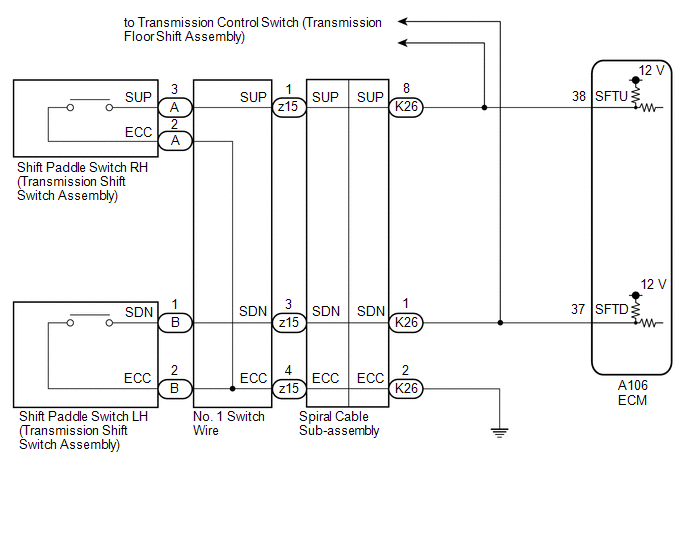

Shift Paddle Switch Circuit [10/2017 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus IS 350, 2023 Lexus IS 350, 2022 Lexus IS 350, 2021 Lexus IS 350, and 2020 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
