Reassembly [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL OIL PUMP RELIEF VALVE
    1. Coat the oil pump relief valve with engine oil and insert the oil pump relief valve and spring into the valve hole.
    2. Install the relief valve plug.

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

  2. INSTALL OIL PUMP COVER
    1. Apply fresh engine oil to the drive rotor and driven rotor.
    2. Place the drive rotor and driven rotor into the timing chain cover with the marks facing the oil pump cover side.

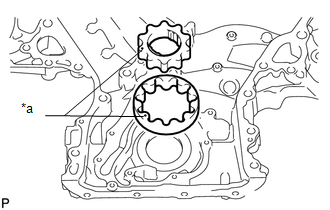

      GTY787946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark
    3. Install the oil pump cover with the 8 bolts.

      Torque: 9.1 N.m (93 kgf/cm, 81 in.lbf)
