Disassembly [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE OIL PUMP COVER

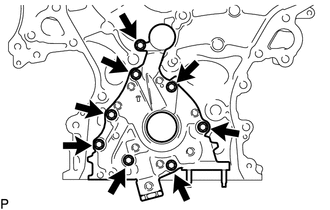

    1. Remove the 8 bolts, oil pump cover, drive rotor and driven rotor.
      GTY627301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE OIL PUMP RELIEF VALVE
    1. Remove the relief valve plug.
      GTY292620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the valve spring and oil pump relief valve.
