Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

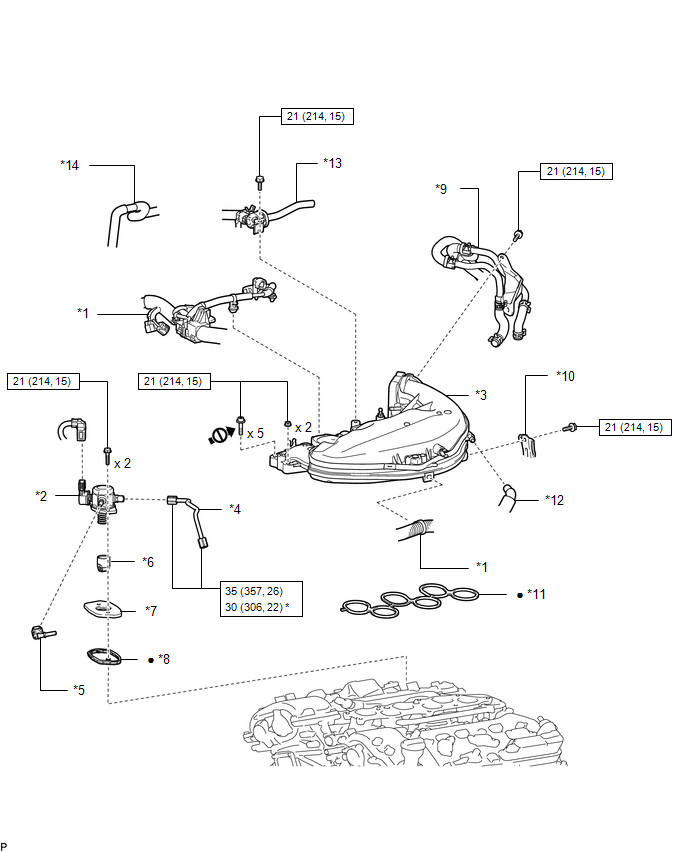

| *1 |
ENGINE WIRE |
*2 |
FUEL PUMP ASSEMBLY |
| *3 |
INTAKE AIR SURGE TANK ASSEMBLY |
*4 |
NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *5 |
FUEL MAIN TUBE CONNECTOR |
*6 |
FUEL PUMP LIFTER ASSEMBLY |
| *7 |
FUEL PUMP LIFTER GUIDE |
*8 |
FUEL PUMP SPACER GASKET |
| *9 |
NO. 2 WATER BY-PASS PIPE |
*10 |
NO. 2 SURGE TANK STAY |
| *11 |
AIR SURGE TANK TO INTAKE MANIFOLD GASKET |
*12 |
VENTILATION HOSE ASSEMBLY |
| *13 |
PURGE VALVE (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY) |
*14 |
WATER BY-PASS HOSE |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with Union nut wrench |
| • |
Non-reusable part |
 |
Do not apply lubricants to the threaded parts |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

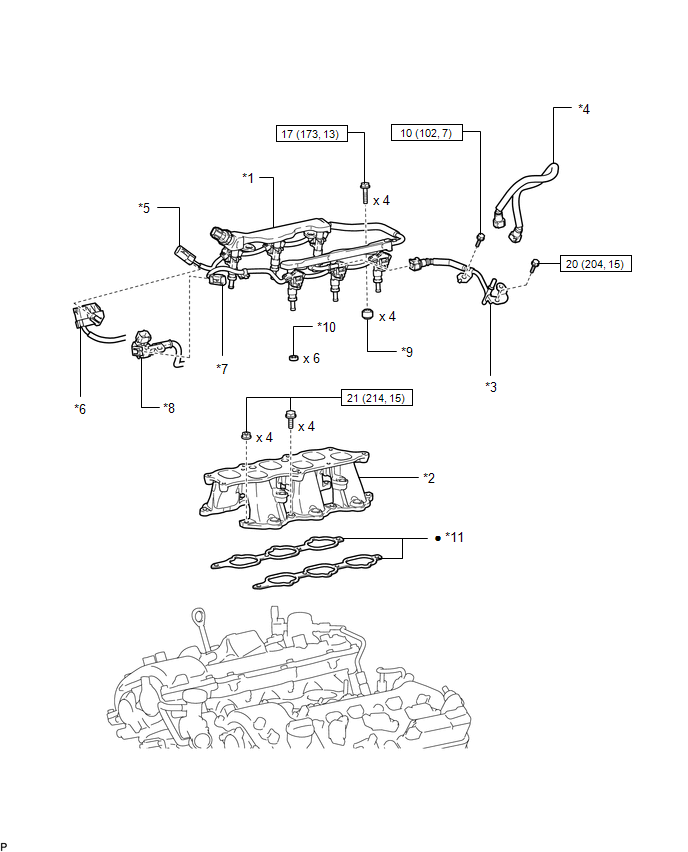

| *1 |
FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY |
*2 |
INTAKE MANIFOLD |
| *3 |
NO. 1 FUEL TUBE SUB-ASSEMBLY |
*4 |
NO. 2 FUEL TUBE SUB-ASSEMBLY |
| *5 |
NO. 5 ENGINE WIRE |
*6 |
NO. 6 ENGINE WIRE |
| *7 |
NO. 7 ENGINE WIRE |
*8 |
NO. 8 ENGINE WIRE |
| *9 |
NO. 1 FUEL DELIVERY PIPE SPACER |
*10 |
INJECTOR VIBRATION INSULATOR |
| *11 |
INTAKE MANIFOLD TO HEAD GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

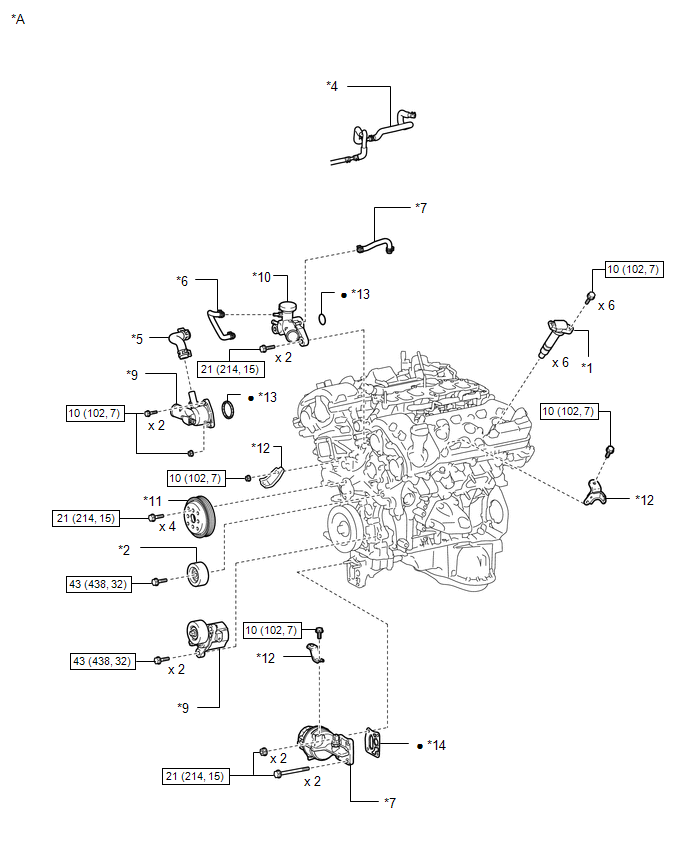

| *A |
for 2WD |
- |
- |
| *1 |
IGNITION COIL ASSEMBLY |
*2 |
NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *3 |
NO. 2 WATER BY-PASS HOSE |
*4 |
NO. 2 WATER BY-PASS HOSE ASSEMBLY |
| *5 |
NO. 3 WATER BY-PASS HOSE |
*6 |
NO. 6 WATER BY-PASS HOSE |
| *7 |
OIL FILTER BRACKET SUB-ASSEMBLY |
*8 |
V-RIBBED BELT TENSIONER ASSEMBLY |
| *9 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
*10 |
WATER OUTLET SUB-ASSEMBLY |
| *11 |
WATER PUMP PULLEY |
*12 |
WIRE HARNESS CLAMP BRACKET |
| *13 |
O-RING |
*14 |
GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

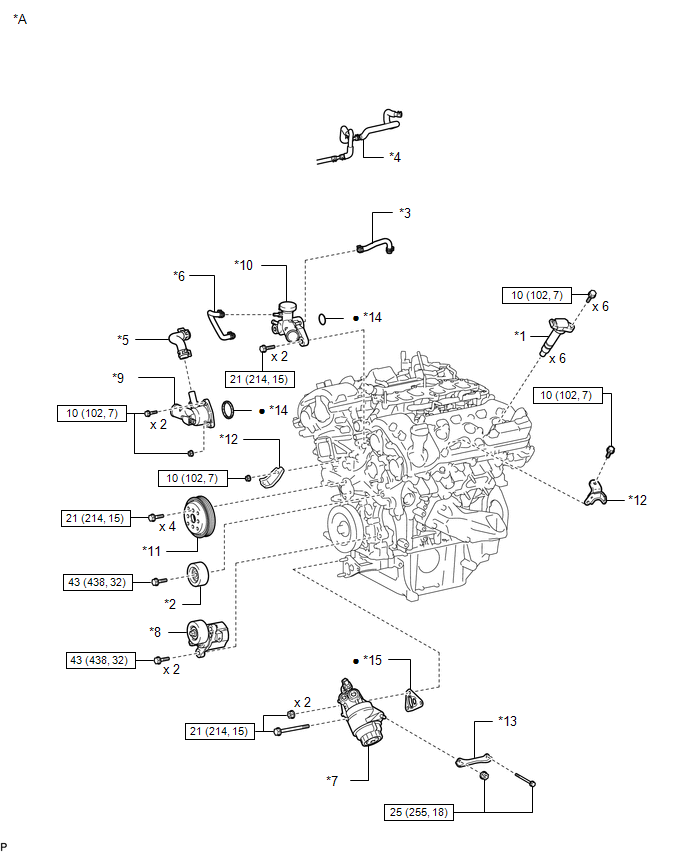

| *A |
for AWD |
- |
- |
| *1 |
IGNITION COIL ASSEMBLY |
*2 |
NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *3 |
NO. 2 WATER BY-PASS HOSE |
*4 |
NO. 2 WATER BY-PASS HOSE ASSEMBLY |
| *5 |
NO. 3 WATER BY-PASS HOSE |
*6 |
NO. 6 WATER BY-PASS HOSE |
| *7 |
OIL FILTER BRACKET SUB-ASSEMBLY |
*8 |
V-RIBBED BELT TENSIONER ASSEMBLY |
| *9 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
*10 |
WATER OUTLET SUB-ASSEMBLY |
| *11 |
WATER PUMP PULLEY |
*12 |
WIRE HARNESS CLAMP BRACKET |
| *13 |
NO. 1 OIL FILTER BRACKET |
*14 |
O-RING |
| *15 |
GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

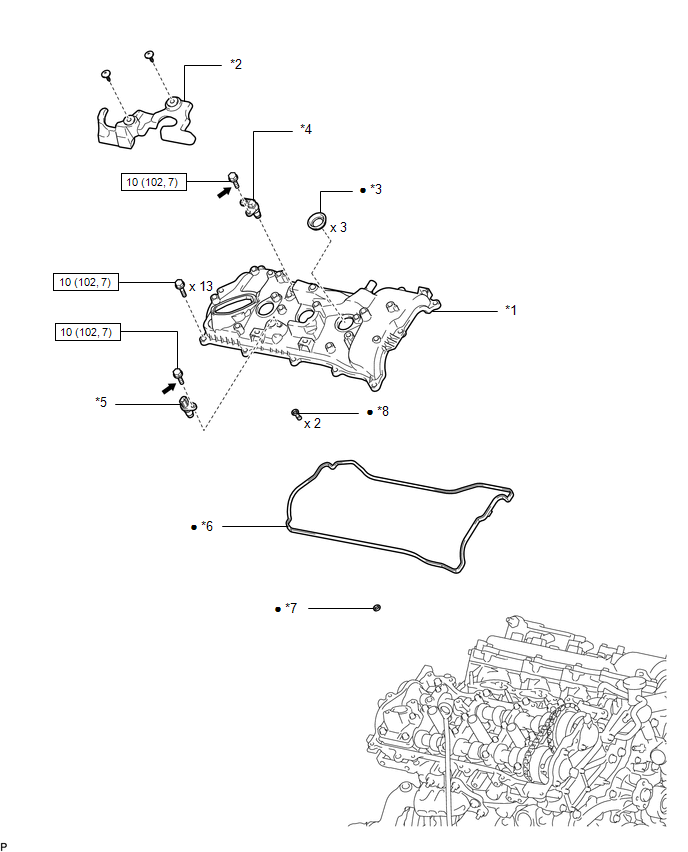

| *1 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*2 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 |
SPARK PLUG TUBE GASKET |
*4 |
VVT SENSOR (for Intake Side of Bank 1) |
| *5 |
VVT SENSOR (for Exhaust Side of Bank1) |
*6 |
CYLINDER HEAD COVER GASKET |
| *7 |
CAMSHAFT BEARING CAP OIL HOLE GASKET RH |
*8 |
GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

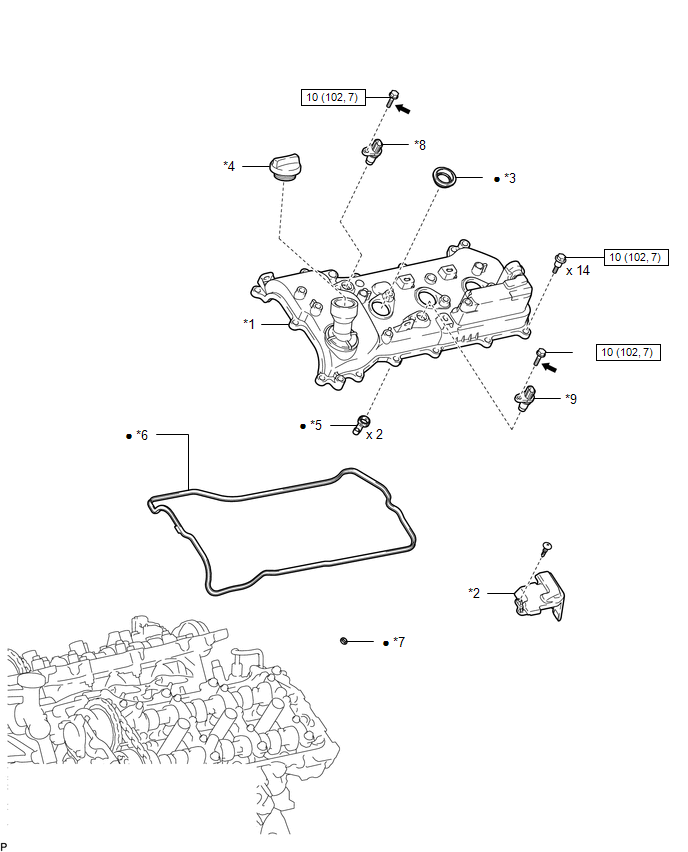

| *1 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
*2 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 |
SPARK PLUG TUBE GASKET |
*4 |
OIL FILLER CAP SUB-ASSEMBLY |
| *5 |
GASKET |
*6 |
CYLINDER HEAD COVER GASKET |
| *7 |
CAMSHAFT BEARING CAP OIL HOLE GASKET LH |
*8 |
VVT SENSOR (for Intake Side of Bank 2) |
| *9 |
VVT SENSOR (for Exhaust Side of Bank2) |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for 2WD |
- |
- |
| *1 |
ENGINE OIL LEVEL SENSOR |
*2 |
NO. 2 OIL PAN SUB-ASSEMBLY |
| *3 |
OIL LEVEL SENSOR BRACKET |
*4 |
OIL PAN SUB-ASSEMBLY |
| *5 |
OIL STRAINER SUB-ASSEMBLY |
*6 |
WIRE HARNESS CLAMP BRACKET |
| *7 |
OIL PAN DRAIN PLUG |
*8 |
O-RING |
| *9 |
CLIP |
*10 |
GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |

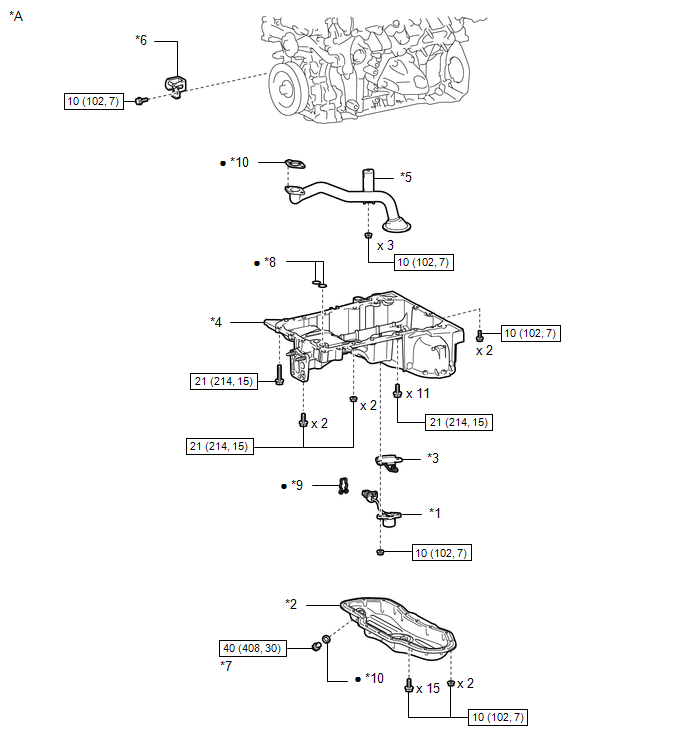

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

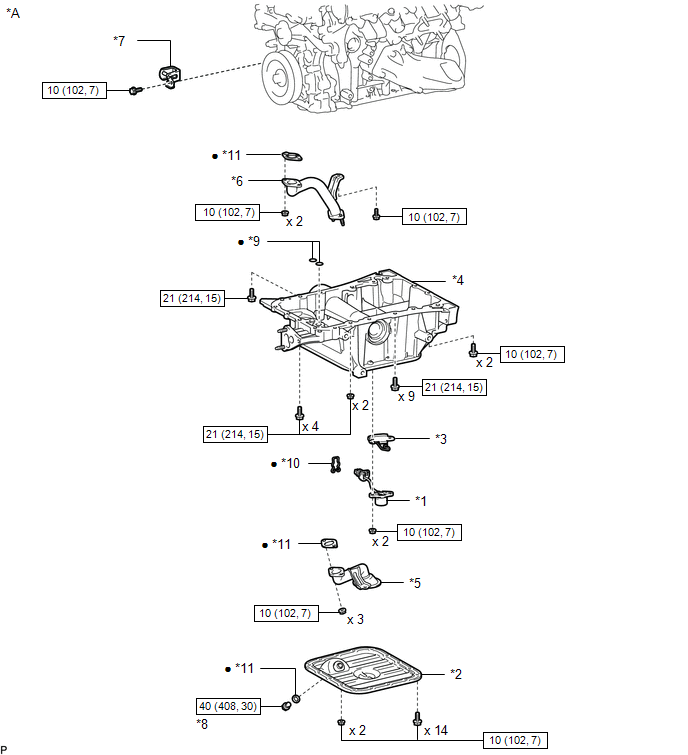

| *A |
for AWD |
- |
- |
| *1 |
ENGINE OIL LEVEL SENSOR |
*2 |
NO. 2 OIL PAN SUB-ASSEMBLY |
| *3 |
OIL LEVEL SENSOR BRACKET |
*4 |
OIL PAN SUB-ASSEMBLY |
| *5 |
OIL PIPE WITH STRAINER SUB-ASSEMBLY |
*6 |
OIL STRAINER SUB-ASSEMBLY |
| *7 |
WIRE HARNESS CLAMP BRACKET |
*8 |
OIL PAN DRAIN PLUG |
| *9 |
O-RING |
*10 |
CLIP |
| *11 |
GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |

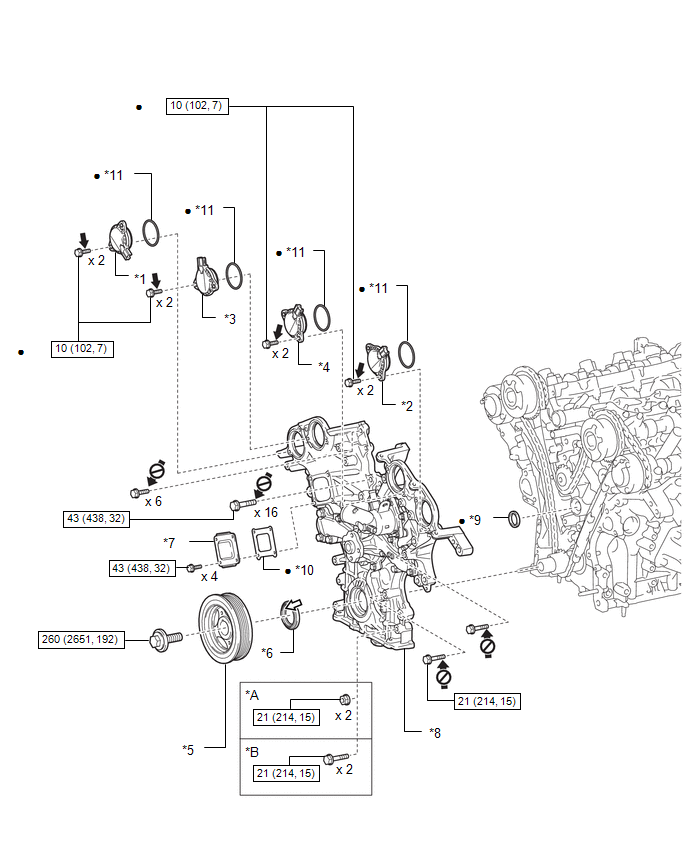

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
Type A |
*B |
Type B |
| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY |
| *3 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY |
*4 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY |
| *5 |
CRANKSHAFT PULLEY |
*6 |
TIMING CHAIN CASE OIL SEAL |
| *7 |
TIMING CHAIN COVER PLATE |
*8 |
TIMING CHAIN COVER SUB-ASSEMBLY |
| *9 |
OIL PUMP GASKET |
*10 |
TIMING GEAR OR CHAIN COVER PLATEGASKET |
| *11 |
O-RING |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
| * |
Precoated part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
 |
MP grease |
|
Do not apply lubricants to the threaded parts |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

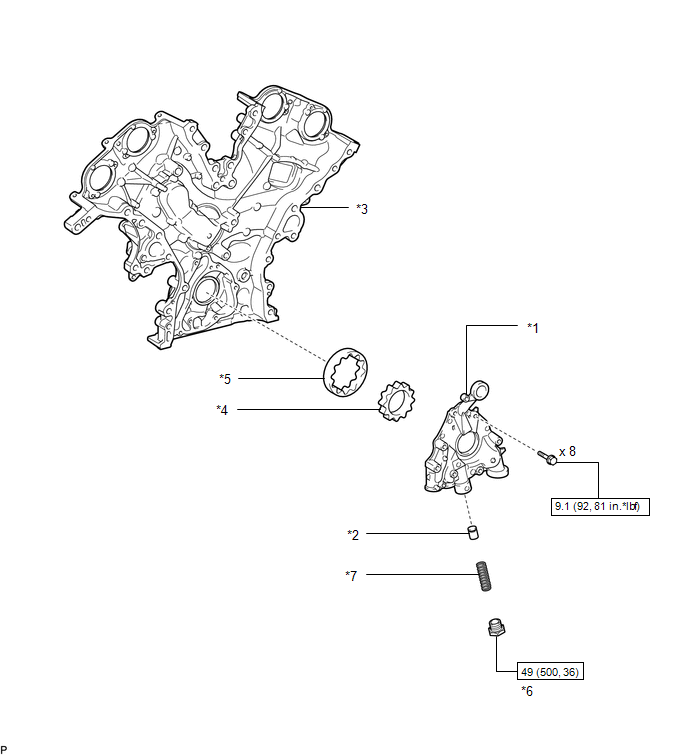

| *1 |
OIL PUMP COVER |
*2 |
OIL PUMP RELIEF VALVE |
| *3 |
TIMING CHAIN COVER SUB-ASSEMBLY |
*4 |
DRIVE ROTOR |
| *5 |
DRIVEN ROTOR |
*6 |
RELIEF VALVE PLUG |
| *7 |
RELIEF VALVE SPRING |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
