Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - ]

  2. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 18 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 18 [09/2020 - ]

  3. DRAIN ENGINE OIL

    See step  1 [10/2017 - 11/2021], or see step  1 [11/2021 - ]

  4. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the engine oil pressure switch assembly connector.

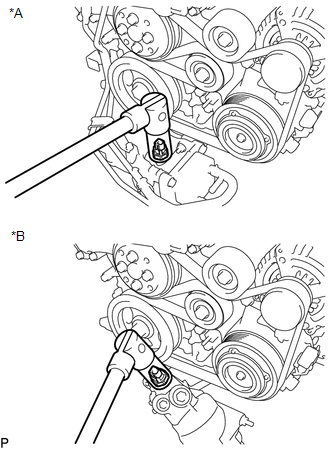

    2. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
      GTY781879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
