Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

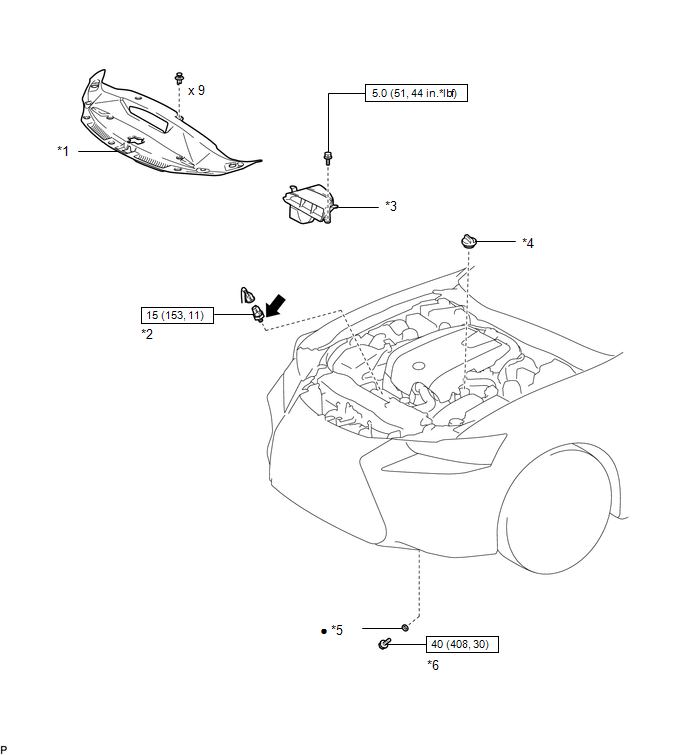

| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE OIL PRESSURE SWITCH ASSEMBLY |
| *3 | NO. 1 AIR CLEANER INLET | *4 | OIL FILLER CAP |
| *5 | GASKET | *6 | OIL PAN DRAIN PLUG |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |
