Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE OIL

    See step  1 [10/2017 - 11/2021], or see step  1 [11/2021 - ]

  2. REMOVE FRONT SUSPENSION MEMBER BRACE (for 2WD)

    Refer to PROCEDURE - Step 13 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 13 [09/2020 - ]

  3. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    See step  33

  4. INSTALL OIL PIPE WITH STRAINER SUB-ASSEMBLY (for AWD)

    See step  34

  5. REMOVE ENGINE OIL LEVEL SENSOR
    1. Disconnect the engine oil level sensor connector.

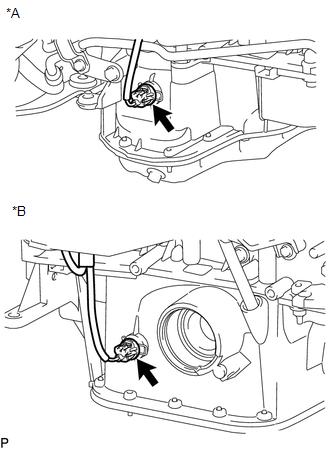

      GTY784723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
    2. Remove the clip from the engine oil level sensor.

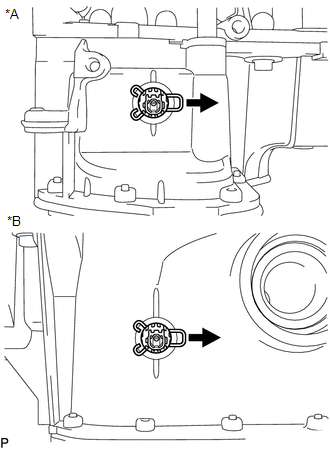

      GTY822869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
    3. Detach the clamp and remove the 2 nuts from the engine oil level sensor.

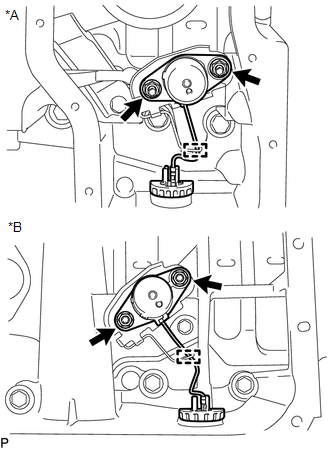

      GTY825748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
  6. REMOVE OIL LEVEL SENSOR BRACKET
    1. Remove the oil level sensor bracket.

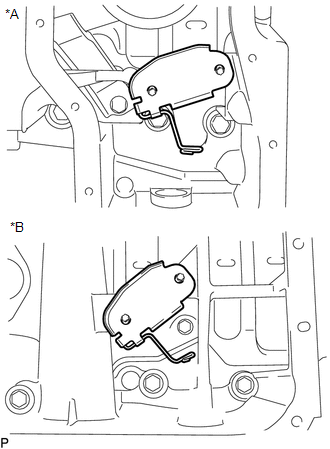

      GTY779280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
