Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

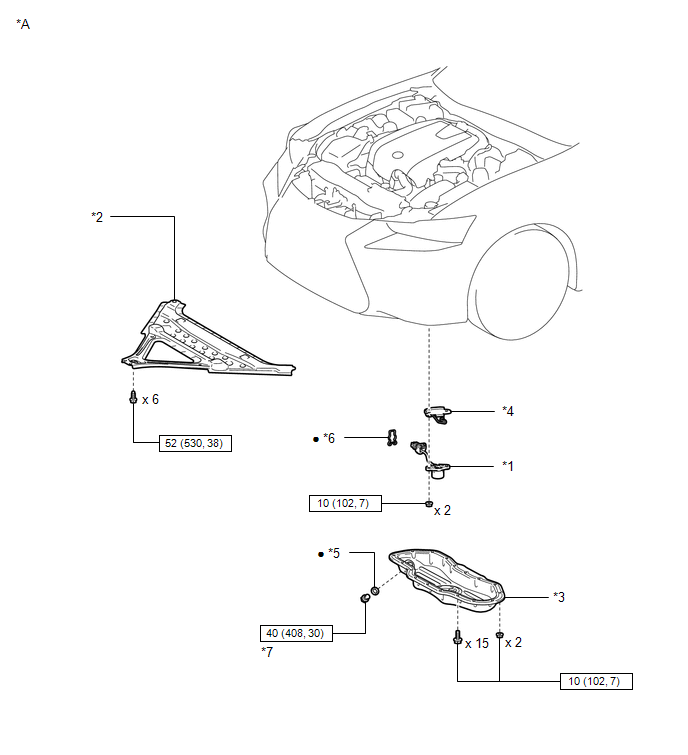

| *A |
for 2WD |
- |
- |
| *1 |
ENGINE OIL LEVEL SENSOR |
*2 |
FRONT SUSPENSION MEMBER BRACE |
| *3 |
NO. 2 OIL PAN SUB-ASSEMBLY |
*4 |
OIL LEVEL SENSOR BRACKET |
| *5 |
GASKET |
*6 |
CLIP |
| *7 |
OIL PAN DRAIN PLUG |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

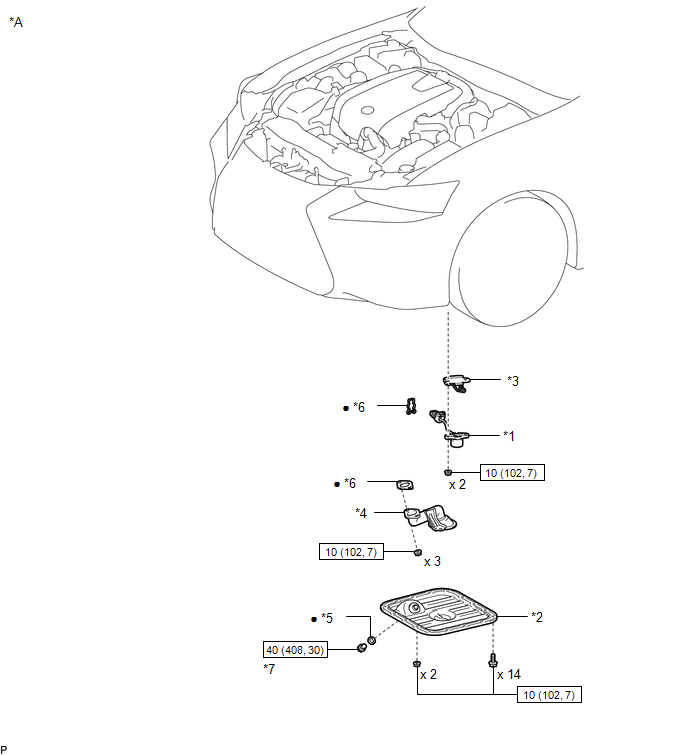

| *A |
for AWD |
- |
- |
| *1 |
ENGINE OIL LEVEL SENSOR |
*2 |
NO. 2 OIL PAN SUB-ASSEMBLY |
| *3 |
OIL LEVEL SENSOR BRACKET |
*4 |
OIL PIPE WITH STRAINER SUB-ASSEMBLY |
| *5 |
GASKET |
*6 |
CLIP |
| *7 |
OIL PAN DRAIN PLUG |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
