Removal [04/2013 - 08/2015]: Procedure
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FRONT SEAT ASSEMBLY LH (for AWD)
Refer to REMOVAL [04/2013 - ]
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [04/2013 - 10/2016]
- DISCONNECT HEATED OXYGEN SENSOR CONNECTOR
- for Bank 1:
- Turn back the floor carpet.

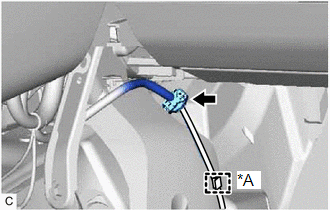

- Disconnect the heated oxygen sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- w/ Clamp:
- Disconnect the clamp.
- for Bank 2:
- Turn back the floor carpet.

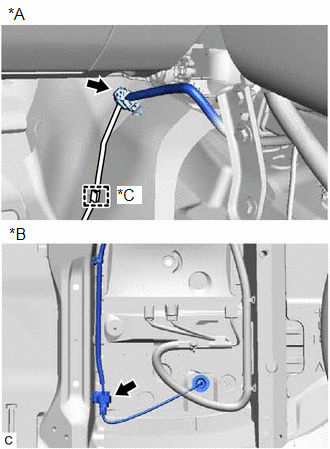

- Disconnect the heated oxygen sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
for 2WD |
| *B |
for AWD |
| *C |
w/ Clamp |
- w/ Clamp:
- Disconnect the clamp.
- REMOVE HEATED OXYGEN SENSOR
- for Bank 1:
- Disconnect the heated oxygen sensor grommet from the body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

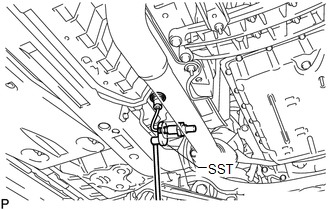

- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- for Bank 2 (for 2WD):
- Disconnect the heated oxygen sensor grommet from the body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- for Bank 2 (for AWD with Front Floor Cover LH):
- Disconnect the 6 clips and remove the front floor cover LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the heated oxygen sensor grommet from the body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the 2 clamps from the body.
- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- for Bank 2 (for AWD without Front Floor Cover LH):
- Disconnect the heated oxygen sensor grommet from the body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the 3 clamps from the body.
- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
