Parts Location [10/2017 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

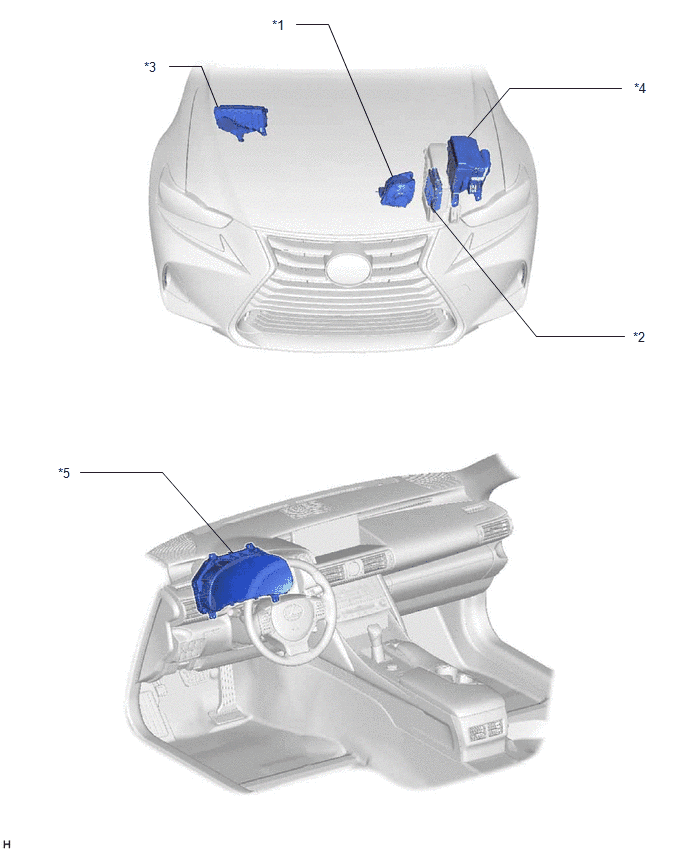

Fig 1: Charging System Replacement Components [10/2017 - ]
GTY819544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 GENERATOR ASSEMBLY *2 ECM
*3 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- ALT FUSE		 *4 NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY
- EFI MAIN FUSE
*5 COMBINATION METER ASSEMBLY - -
