Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  2. REMOVE PURGE VALVE (PURGE VSV)

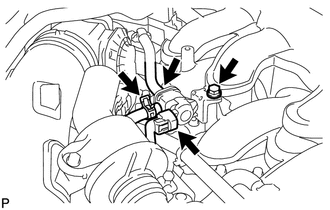

    1. Slide the clip and disconnect the No. 2 fuel vapor feed hose from the purge valve (purge VSV).
      GTY405929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
    3. Disconnect the purge valve (purge VSV) connector.
    4. Remove the bolt and purge valve (purge VSV) from the intake air surge tank assembly.
