Installation [04/2013 - 08/2015]: Procedure
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL PURGE VALVE (PURGE VSV)
- Install the purge valve (purge VSV) to the intake air surge tank assembly with the bolt.
Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)
- Connect the purge valve (purge VSV) connector.

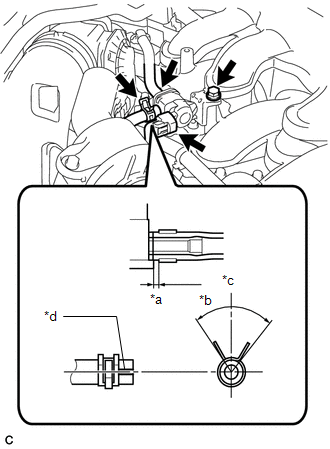

*a 2 to 7 mm (0.0787 to 0.276 in.) *b 90° *c Upper Side *d Paint Mark - Connect the No. 2 fuel vapor feed hose to the purge valve (purge VSV) and slide the clip to secure it.
HINT:
Engage the clip within the area shown in the illustration.
- Connect the No. 1 fuel vapor feed hose to the purge valve (purge VSV).
- Install the purge valve (purge VSV) to the intake air surge tank assembly with the bolt.
- INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 104
