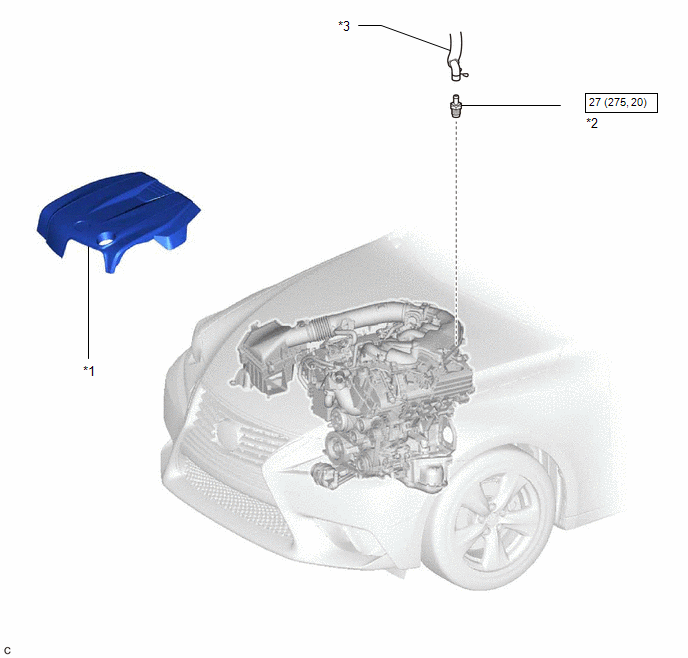

Components [04/2013 - 08/2015]
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
V-BANK COVER SUB-ASSEMBLY |
*2 |
PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) |
| *3 |
VENTILATION HOSE ASSEMBLY |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
* |
Precoated part |
