Installation [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL LEAK DETECTION PUMP SUB-ASSEMBLY

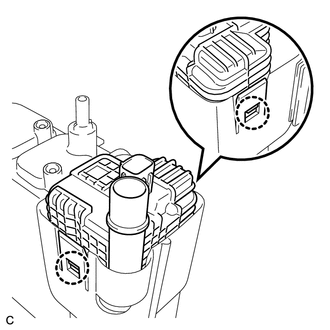

    1. Engage the 2 claws to install a new leak detection pump sub-assembly to the charcoal canister sub-assembly.
      GTY372273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not allow foreign matter such as grease, oil or water to adhere to the O-rings.
      • Ensure that the claws are engaged properly.
  2. INSTALL CHARCOAL CANISTER BASE BRACKET
    1. Engage the claw to install the charcoal canister base bracket.
  3. INSTALL CANISTER (CHARCOAL CANISTER ASSEMBLY)
    1. Engage the clip to install the canister (charcoal canister assembly).
    2. Install the 3 nuts to the canister (charcoal canister assembly).

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

    3. Connect the purge line hose to the canister (charcoal canister assembly) and slide the clip to secure it.
    4. Push in the vent line hose and air line tube to the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
      • After connecting the vent line hose and air line tube, check that the vent line hose and air line tube are securely connected by pulling on the tube connector and leak detection pump sub-assembly.
      GTY459055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      *b Push
    5. Connect the leak detection pump sub-assembly connector.
    6. Connect the wire harness with the 3 clamps.
  4. INSTALL NO. 1 FLOOR UNDER COVER ASSEMBLY
    1. Install the No. 1 floor under cover assembly with the 4 clips and 5 grommets.
