Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT TRANSMISSION WIRE
Refer to REMOVAL [04/2013 - 08/2015]

REMOVE TRANSMISSION VALVE BODY ASSEMBLY

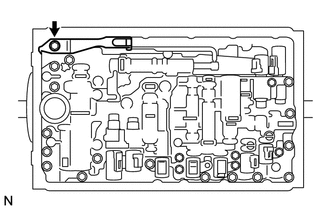

Remove the bolt, detent spring cover and detent spring.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

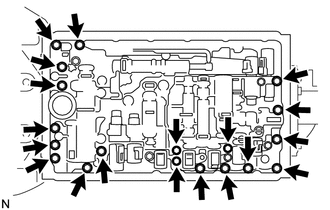

Remove the 19 bolts and transmission valve body assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

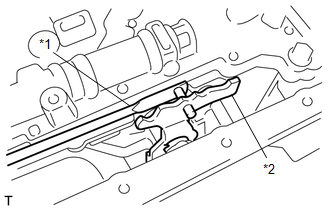

Disconnect the manual valve connecting rod sub-assembly from the manual valve lever sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Manual Valve Connecting Rod Sub-assembly
*2	Manual Valve Lever Sub-assembly

Remove the check ball body and compression spring.

*1	Check Ball Body
*2	Compression Spring

NOTE:

Do not drop the check ball body and compression spring.
