INSTALL TRANSMISSION VALVE BODY ASSEMBLY

Install the check ball body and the compression spring.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

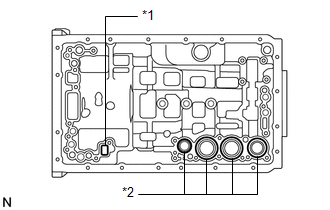

*1	Check Ball Body and Compression Spring
*2	Accumulator Piston

Check the accumulator pistons, check ball body and compression spring shown in the illustration.
Connect the manual valve connecting rod sub-assembly to the manual valve lever sub-assembly.

Install the transmission valve body assembly with the 19 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

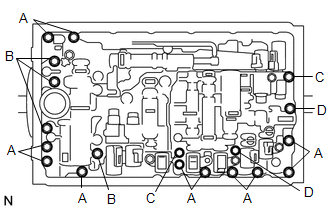

BOLT LENGTH

Bolt	Bolt Length
A	25 mm (0.984 in.)
B	36 mm (1.417 in.)
C	45 mm (1.772 in.)
D	50 mm (1.969 in.)

Install the detent spring and the detent spring cover with the bolt.
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

CONNECT TRANSMISSION WIRE
Refer to INSTALLATION [04/2013 - 08/2015]
RESET MEMORY
Refer to INITIALIZATION [04/2013 - 08/2015]
