Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

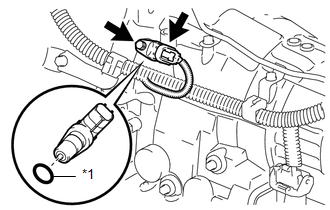

    GTY466714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 O-ring
    1. Disconnect the transmission revolution sensor (NT) connector.
    2. Remove the bolt and transmission revolution sensor (NT).
    3. Remove the O-ring from the transmission revolution sensor (NT).
  2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)
    1. Disconnect the transmission revolution sensor (SP2) connector.

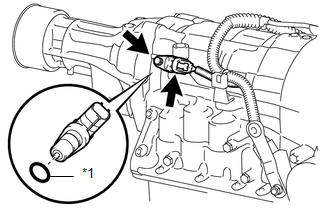

      GTY464243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
    2. Remove the bolt and transmission revolution sensor (SP2).
    3. Remove the O-ring from the transmission revolution sensor (SP2).
