Reassembly [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SHIFT POSITION INDICATOR
    1. Install the shift position indicator to the console panel sub-assembly with the 2 screws.

      Torque: 1.6 N.m (16 kgf/cm, 14 in.lbf)

      GTY464973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 clamps and guide to the console panel sub-assembly.

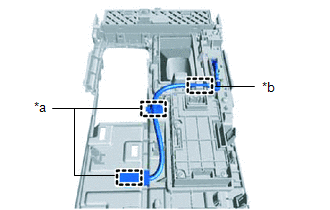

      GTY466000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
  2. INSTALL SHIFT LEVER PLATE SUB-ASSEMBLY
    1. Engage the 2 claws to install the shift lever plate sub-assembly to the shift position indicator.
      GTY458417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
