Disassembly [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT LEVER PLATE SUB-ASSEMBLY
    1. Disengage the 2 claws and remove the shift lever plate sub-assembly from the shift position indicator.
      GTY458417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT POSITION INDICATOR

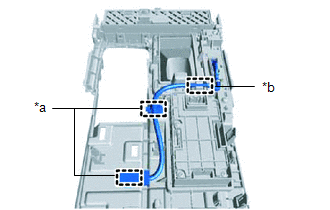

    1. Disconnect the 2 clamps and guide from the console panel sub-assembly.
      GTY465999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Remove the 2 screws and shift position indicator from the console panel sub-assembly.
      GTY464973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
