Adjustment [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
Refer to REMOVAL [04/2013 - 08/2015]
REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 2

ADJUST SHIFT LEVER POSITION

Move the shift lever to N.

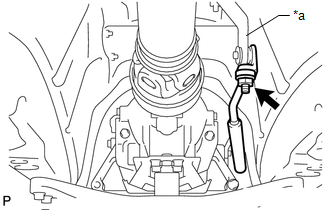

Remove the nut and separate the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Lever

Turn the transmission control shaft lever RH counterclockwise until it stops, then turn it clockwise 2 notches.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Transmission Control Shaft Lever RH
*a	P
*b	R
*c	N

Temporarily install the floor shift gear shifting rod sub-assembly to the lever of the transmission floor shift assembly with the nut.

*a	Lever
	Pushing the lever rearward

Tighten the nut while lightly pushing the lever of the transmission floor shift assembly rearward.
Torque: 12.8 N.m (131 kgf/cm, 9 ft.lbf)

NOTE:
Do not push the lever of the transmission floor shift assembly too hard.

INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 4
INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
Refer to INSTALLATION [04/2013 - 08/2015]
INSPECT SHIFT LEVER POSITION
See step 1
INSPECT FOR EXHAUST GAS LEAK
Refer to PROCEDURE - Step 9
