Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY

Move the shift lever to N.

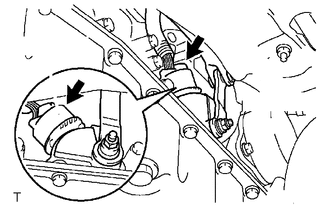

Remove the clip and pin, and separate the floor shift gear shifting rod sub-assembly from the transmission control shaft lever RH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Disconnect the park/neutral position switch assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the nut, spring washer and transmission control shaft lever RH from the park/neutral position switch assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pry out the nut stopper and remove the lock nut and the nut stopper from the park/neutral position switch assembly.

*1	Nut Stopper
*2	Lock Nut

Remove the bolt and park/neutral position switch assembly from the automatic transmission assembly.

HINT:

Make sure that the manual valve lever shaft has not been rotated prior to installing the park/neutral position switch assembly as the detent spring may become detached from the manual valve lever shaft.
