Replacement [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

    Refer to REMOVAL [04/2013 - 08/2015]

  2. REMOVE AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL

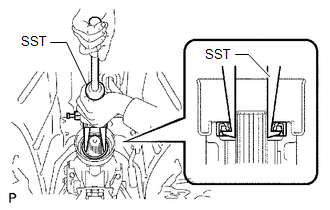

    1. Using SST, remove the automatic transmission extension housing oil seal.
      GTY468421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
  3. INSTALL AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL
    1. Coat the lip of a new automatic transmission extension housing oil seal with MP grease.

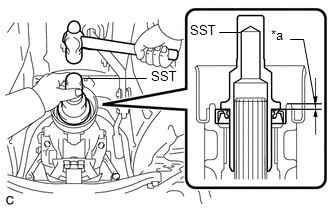

    2. Using SST and a hammer, tap in the automatic transmission extension housing oil seal.
      GTY467457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 5.4 to 5.8 mm (0.213 to 0.228 in.)
      • SST: 09325-40010

      Standard depth

      5.4 to 5.8 mm (0.213 to 0.228 in.)

      NOTE:
      • Keep the lip free of foreign matter.
      • Do not tap the oil seal at an angle.
  4. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

    Refer to INSTALLATION [04/2013 - 08/2015]

  5. ADJUST AUTOMATIC TRANSMISSION FLUID

    Refer to ADJUSTMENT [04/2013 - 08/2015]

  6. INSPECT FOR AUTOMATIC TRANSMISSION FLUID LEAK
