Components [04/2013 - 08/2015]

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

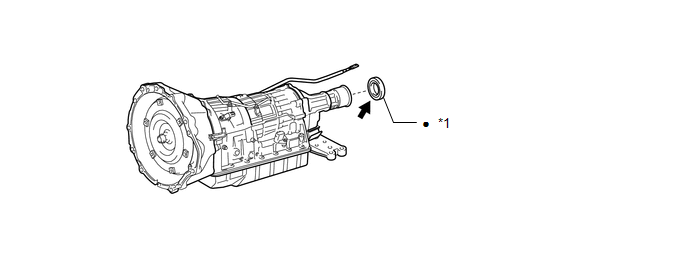

Fig 1: Extension Housing Rear Oil Seal Replacement Components [04/2013 - 08/2015]
GTY467945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL - -
• Non-reusable part MP Grease
