Parts Location [04/2013 - 08/2015]: Illustration
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

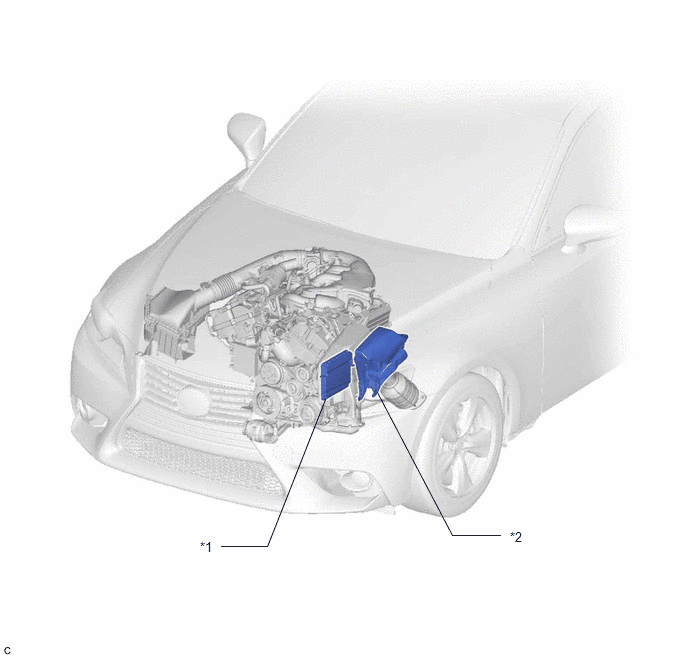

| *1 |
ECM |
*2 |
NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY
- IG2 FUSE |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

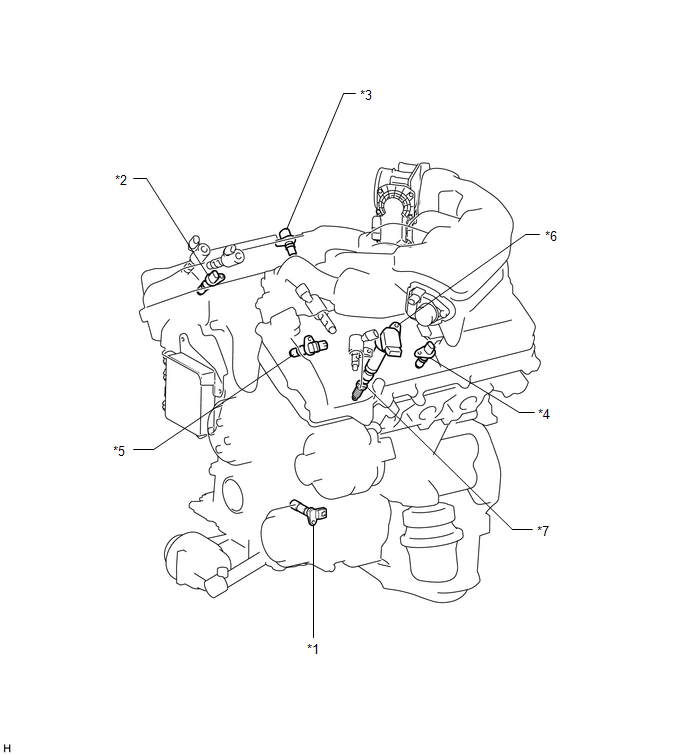

| *1 |
CRANKSHAFT POSITION SENSOR |
*2 |
VVT SENSOR (for Intake Side of Bank 1) |
| *3 |
VVT SENSOR (for Exhaust Side of Bank 1) |
*4 |
VVT SENSOR (for Exhaust Side of Bank 2) |
| *5 |
VVT SENSOR (for Intake Side of Bank 2) |
*6 |
IGNITION COIL ASSEMBLY |
| *7 |
SPARK PLUG |
- |
- |
