Replacement [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

REPLACE STRAIGHT PIN

NOTE:

It is not necessary to remove the straight pin unless it is being replaced.

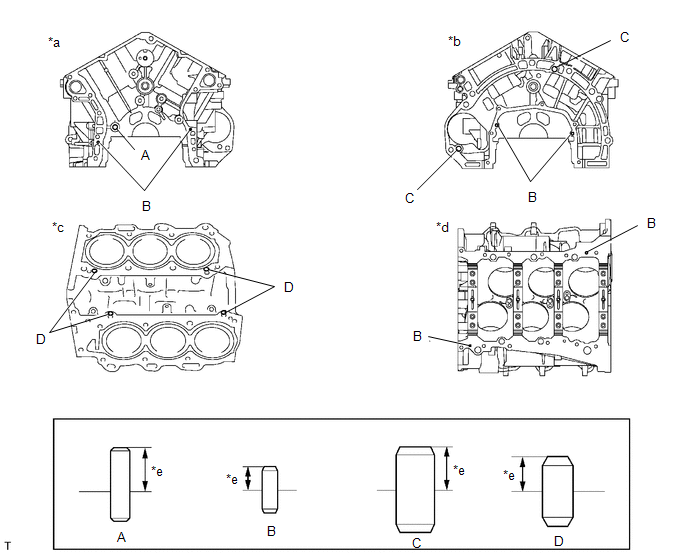

Using a plastic-faced hammer, tap in new straight pins to the cylinder block.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front Side	*b	Rear Side
*c	Upper Side	*d	Lower Side
*e	Protrusion Height	-	-

Standard Protrusion

Item	Specified Condition
Pin A	22.5 to 23.5 mm (0.886 to 0.925 in.)
Pin B	5.5 to 6.5 mm (0.217 to 0.256 in.)
Pin C	10.5 to 11.5 mm (0.413 to 0.453 in.)
Pin D	8.5 to 9.5 mm (0.335 to 0.374 in.)

REPLACE STUD BOLT

NOTE:

If a stud bolt is deformed or its threads are damaged, replace it.

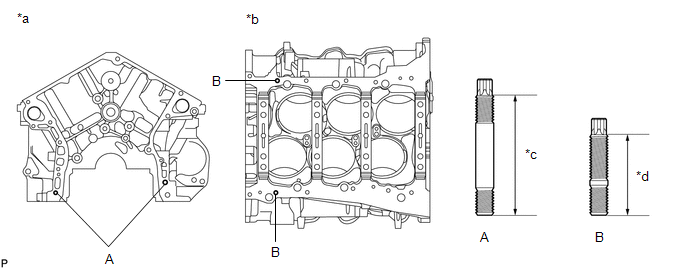

Using an E8 "TORX" socket wrench, install the stud bolts.

*a	Front Side	*b	Lower Side
*c	52 mm (2.05 in.)	*d	35 mm (1.38 in.)

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
