Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL PURGE VALVE (PURGE VSV)

Install the purge valve (purge VSV) to the intake air surge tank assembly with the bolt.

Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

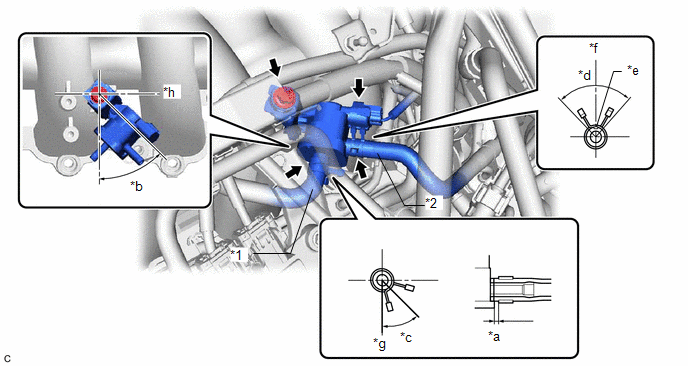

*1	Fuel Vapor Feed Hose	*2	No. 1 Fuel Vapor Feed Hose
*a	1 to 5 mm (0.0394 to 0.197 in.)	*b	30° to 60°
*c	40° to 60°	*d	90°
*e	Paint Mark	*f	Upper
*g	Under	*h	Back

HINT:

Make sure the direction of the purge valve (purge VSV) is as shown in the illustration.

Connect the purge valve (purge VSV) connector.
Connect the No. 1 fuel vapor feed hose to the purge valve (purge VSV) and slide the clip to secure it.
HINT:

Engage the clip within the area shown in the illustration.
Connect the fuel vapor feed hose to the purge valve (purge VSV) and slide the clip to secure it.
HINT:

Engage the clip within the area shown in the illustration.

INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 91
