INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

Apply adhesive to 2 or 3 threads of the PCV valve (ventilation valve sub-assembly).
Adhesive

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

Using a 22 mm ball joint lock nut wrench, install the PCV valve (ventilation valve sub-assembly) to the case separator.

Specified tightening torque

Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

NOTE:

Do not start the engine for at least 1 hour after installation.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

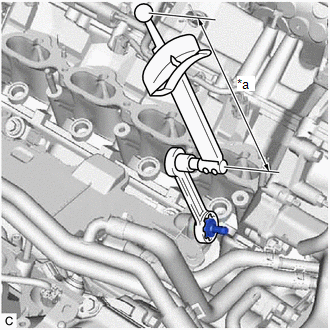

*a	Torque Wrench Fulcrum Length

HINT:

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [09/2020 - ]
When using a 22 mm ball joint lock nut wrench (fulcrum length of 151 mm (5.94 in.)) + torque wrench (fulcrum length of 185 mm (7.28 in.)):
3.0 N.m (31 kgf/cm, 27 in.lbf)

Connect the ventilation hose assembly to the PCV valve (ventilation valve sub-assembly) and slide the clip to secure it.

INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
INSTALL INTAKE AIR SURGE TANK ASSEMBLY
Refer to INSTALLATION [11/2021 - ]
