Components [11/2021 - ]

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

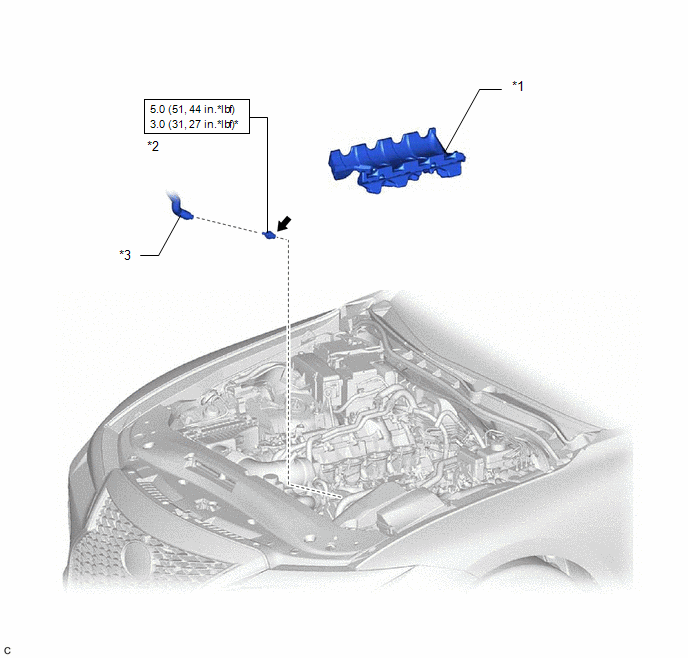

Fig 1: PCV Valve Replacement Components With Torque Specifications
GTY1084265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
*3 VENTILATION HOSE ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque Adhesive 1324
* Precoated part * For use with ball joint lock nut wrench
