Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. DISCONNECT VENTILATION HOSE

    See step  5

  3. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  6

  4. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

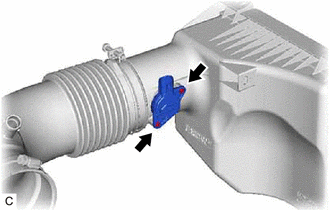

    1. Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
      GTY515739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the mass air flow meter sub-assembly has been struck or dropped, replace it.
