Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
REMOVE POWER STEERING ECU ASSEMBLY
Refer to REMOVAL [09/2020 - ]

REMOVE BATTERY TRAY

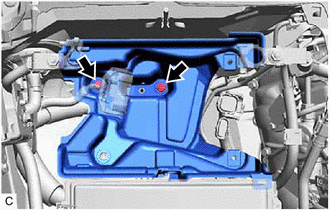

Remove the 2 bolts and battery tray.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SEPARATE NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

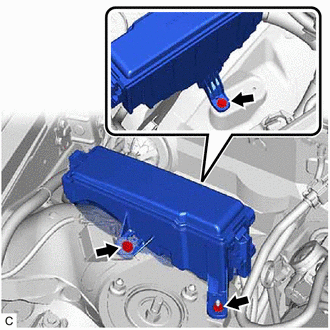

Remove the 2 bolts and nut and separate the No. 1 engine room relay block and No. 1 junction block assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

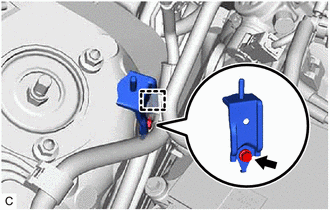

Disengage the wire harness clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt and wire harness clamp bracket.

SEPARATE NO. 3 ENGINE ROOM RELAY BLOCK ASSEMBLY

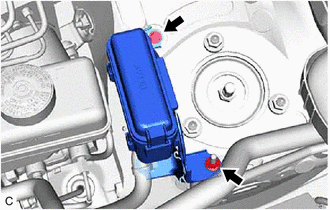

Remove the bolt and nut and separate the No. 3 engine room relay block assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

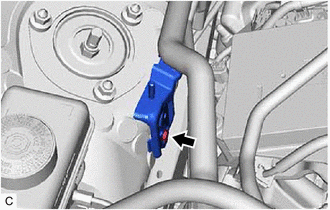

Remove the bolt and wire harness clamp bracket.

REMOVE IGNITION COIL ASSEMBLY

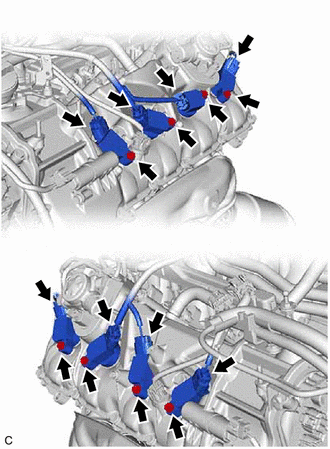

Disconnect the 8 ignition coil assembly connectors.

Remove the 8 bolts and 8 ignition coil assemblies from the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH.
NOTE:
If an ignition coil assembly has been struck or dropped, replace it.

HINT:

Arrange the removed parts in the correct order.

REMOVE SPARK PLUG

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

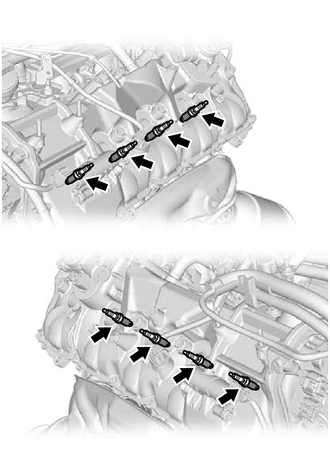

1. Remove the 8 spark plugs from the cylinder head sub-assembly and cylinder head LH.
  NOTE:
  If a spark plug has been struck or dropped, replace it.

  HINT:

  Arrange the removed parts in the correct order.
