Components [11/2021 - ]

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

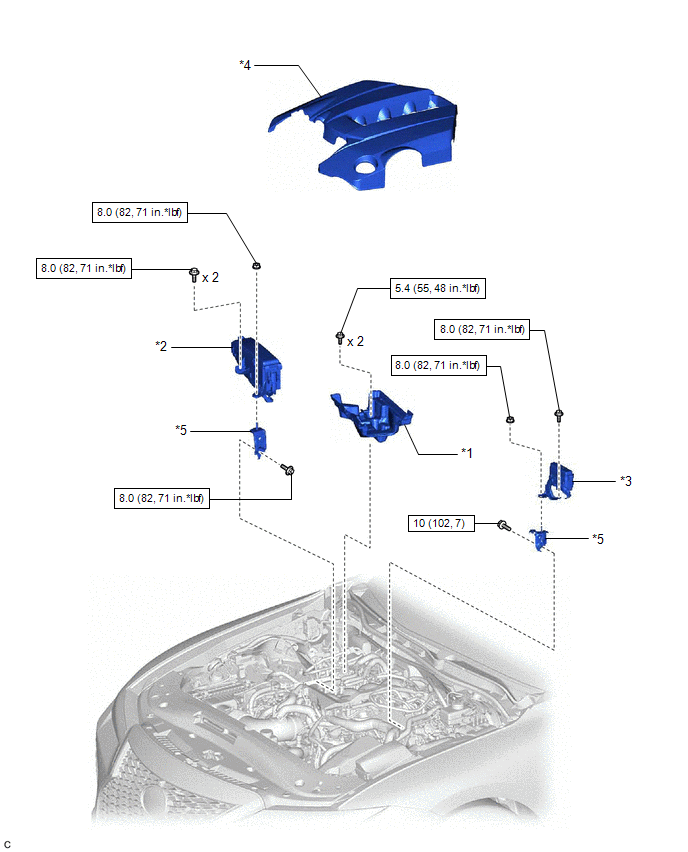

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BATTERY TRAY	*2	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
*3	NO. 3 ENGINE ROOM RELAY BLOCK ASSEMBLY	*4	V-BANK COVER SUB-ASSEMBLY
*5	WIRE HARNESS CLAMP BRACKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

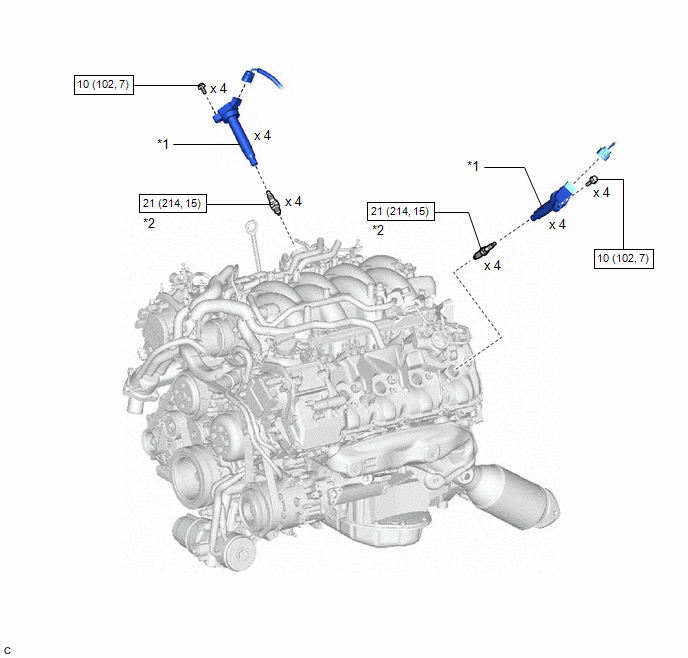

Fig 2: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 2)

*1	IGNITION COIL ASSEMBLY	*2	SPARK PLUG
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
