Removal [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [11/2021 - ]

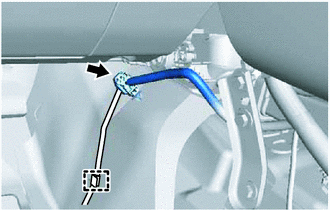

- DISCONNECT HEATED OXYGEN SENSOR CONNECTOR
- for Bank 1:
- Turn back the floor carpet.
- Disconnect the heated oxygen sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the clamp.

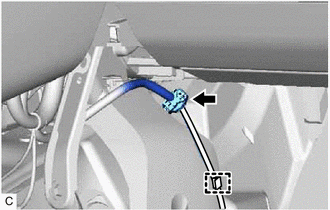

- for Bank 2:
- Turn back the floor carpet.
- Disconnect the heated oxygen sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the clamp.
- REMOVE HEATED OXYGEN SENSOR (for Bank 1)
- Disengage the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
NOTE:
If the heated oxygen sensor has been struck or dropped, replace it.
- REMOVE HEATED OXYGEN SENSOR (for Bank 2)
- Disengage the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
NOTE:
If the heated oxygen sensor has been struck or dropped, replace it.
