Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  3. REMOVE CENTER NO. 4 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 2

  4. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  5. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 1

  6. DISCONNECT VENTILATION HOSE

    See step  5

  7. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  6

  8. REMOVE RADIATOR RESERVE TANK ASSEMBLY

    Refer to PROCEDURE - Step 11

  9. REMOVE ENGINE OIL TEMPERATURE SENSOR
    1. Disconnect the engine oil temperature sensor connector.

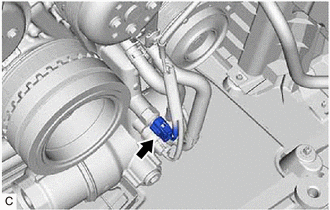

      GTY1084262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the engine oil temperature sensor from the oil filter bracket sub-assembly.
      NOTE:

      If the engine oil temperature sensor has been struck or dropped, replace it.

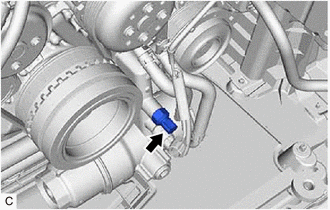

      GTY1084256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the engine oil temperature sensor.
