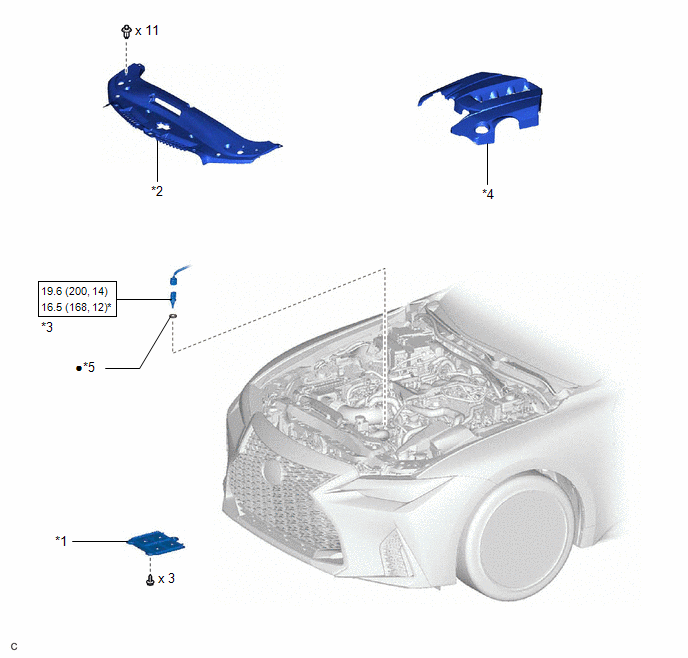

Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
CENTER NO. 4 ENGINE UNDER COVER |
*2 |
COOL AIR INTAKE DUCT SEAL |
| *3 |
ENGINE COOLANT TEMPERATURE SENSOR |
*4 |
V-BANK COVER SUB-ASSEMBLY |
| *5 |
GASKET |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with a union nut wrench |
| • |
Non-reusable part |
- |
- |
